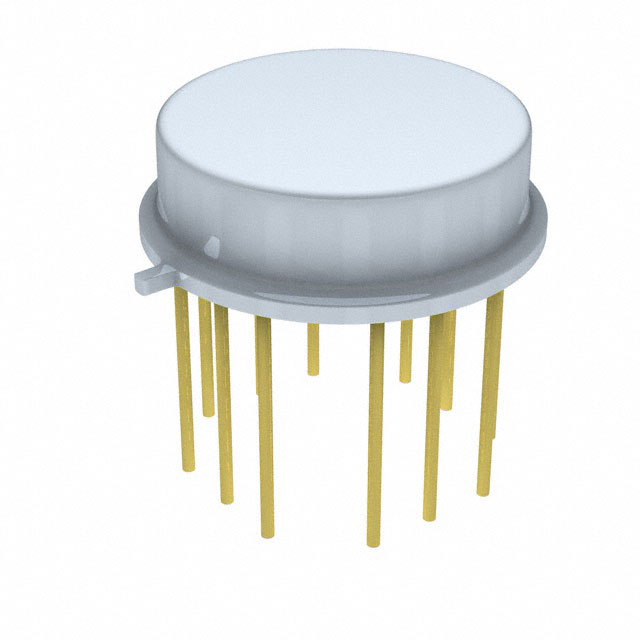

AD842JH
IC OPAMP GP 80MHZ 100MA TO8-12Manufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc. AD842JH is a single-circuit, general-purpose operational amplifier. This component features an 80 MHz gain bandwidth product and a 375 V/µs slew rate, making it suitable for demanding signal conditioning applications. It operates with a supply voltage range of 10 V to 36 V and consumes a nominal 13 mA of supply current. The AD842JH offers a low input bias current of 4.2 µA and a typical input offset voltage of 500 µV. The output current capability is 100 mA. Housed in a TO-8-12 package, this device is designed for through-hole mounting and is supplied in bulk packaging. Its performance characteristics lend themselves to use in instrumentation and industrial control systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-8 Style, 12 Leads |
| Output Type | - |
| Mounting Type | Through Hole |
| Amplifier Type | General Purpose |
| Operating Temperature | 0°C ~ 75°C |
| Current - Supply | 13mA |
| Slew Rate | 375V/µs |
| Gain Bandwidth Product | 80 MHz |
| Current - Input Bias | 4.2 µA |
| Voltage - Input Offset | 500 µV |
| Supplier Device Package | TO-8-12 |
| Number of Circuits | 1 |
| Current - Output / Channel | 100 mA |
| Voltage - Supply Span (Min) | 10 V |
| Voltage - Supply Span (Max) | 36 V |
