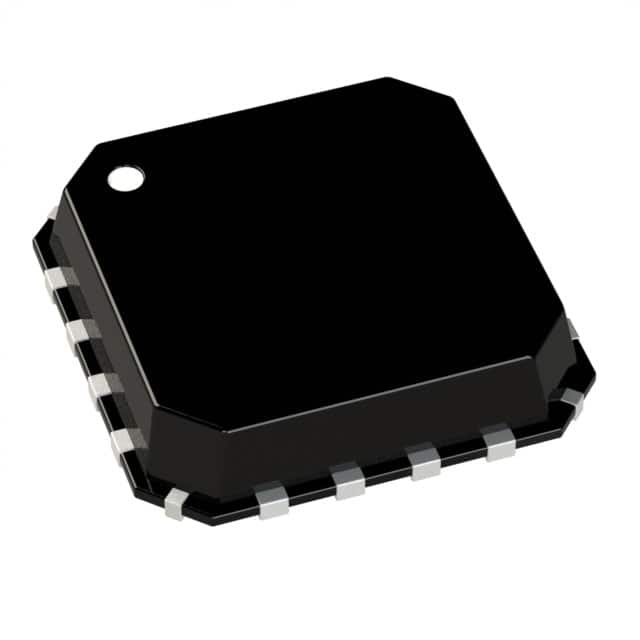

AD8426BCPZ-WP
IC INST AMP 2 CIRCUIT 16LFCSPManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
The Analog Devices Inc. AD8426BCPZ-WP is a high-performance instrumentation amplifier featuring two independent channels. This component offers a 1 MHz -3dB bandwidth and a 0.6V/µs slew rate, suitable for applications demanding precise signal conditioning. Its rail-to-rail output stage maximizes dynamic range. With an input bias current of 20 nA and a low offset voltage of 100 µV, it ensures accuracy in demanding measurement scenarios. The device operates from a wide supply voltage range of 2.7V to 36V, with a low quiescent current of 350µA per channel. Packaged in a compact 16-LFCSP-VQ (4x4) for surface mounting, this instrumentation amplifier finds extensive use in industrial automation, medical equipment, and test and measurement systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 16-VQFN, CSP |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | Instrumentation |
| Operating Temperature | -40°C ~ 125°C |
| Current - Supply | 350µA (x2 Channels) |
| Slew Rate | 0.6V/µs |
| Current - Input Bias | 20 nA |
| Voltage - Input Offset | 100 µV |
| Supplier Device Package | 16-LFCSP-VQ (4x4) |
| Number of Circuits | 2 |
| Current - Output / Channel | 13 mA |
| -3db Bandwidth | 1 MHz |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 36 V |
