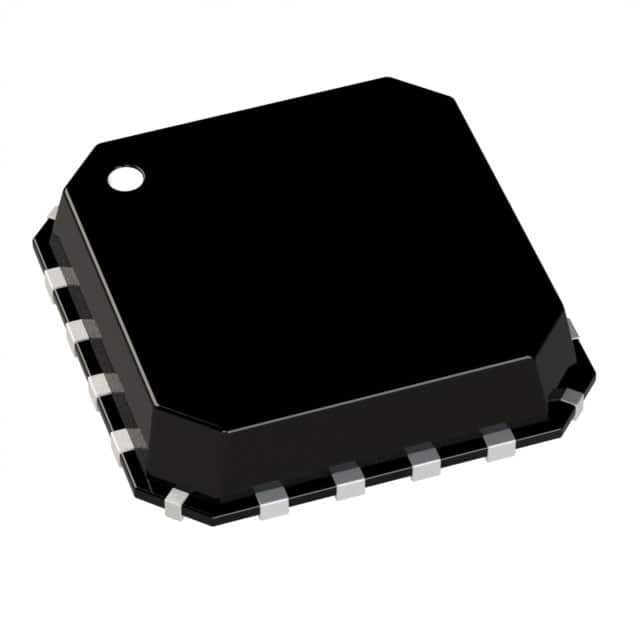

AD8426ACPZ-R7
IC INST AMP 2 CIRCUIT 16LFCSPManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc. AD8422ACPZ-R7 is a high-performance, 2-circuit instrumentation amplifier. This device features rail-to-rail output and a low input bias current of 20 nA. The AD8422ACPZ-R7 offers a precise input offset voltage of 200 µV and a -3dB bandwidth of 1 MHz, making it suitable for demanding applications. It operates from a wide supply voltage range of 2.7 V to 36 V and consumes a low quiescent current of 350 µA per channel. The slew rate is 0.6 V/µs, and the current output capability is 13 mA per channel. This component is housed in a compact 16-LFCSP-VQ (4x4) package and is supplied on tape and reel. Its specifications lend themselves to use in medical instrumentation, industrial process control, and data acquisition systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-VQFN, CSP |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | Instrumentation |
| Operating Temperature | -40°C ~ 125°C |
| Current - Supply | 350µA (x2 Channels) |
| Slew Rate | 0.6V/µs |
| Current - Input Bias | 20 nA |
| Voltage - Input Offset | 200 µV |
| Supplier Device Package | 16-LFCSP-VQ (4x4) |
| Number of Circuits | 2 |
| Current - Output / Channel | 13 mA |
| -3db Bandwidth | 1 MHz |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 36 V |
