AD841KH
IC OPAMP GP 1 CIRCUIT TO8-12Manufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc. AD841KH is a general-purpose operational amplifier featuring a single circuit within a TO-8-12 package. This component offers a gain bandwidth product of 40 MHz and a high slew rate of 300V/µs, making it suitable for demanding signal processing applications. Key specifications include a low input bias current of 3.5 µA and an output current capability of 50 mA per channel. The device operates over a supply voltage span from 10 V to 36 V with a typical supply current of 11 mA. It is designed for through-hole mounting and operates within a temperature range of 0°C to 75°C. The AD841KH is utilized in instrumentation and buffering circuits across various industrial sectors.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |

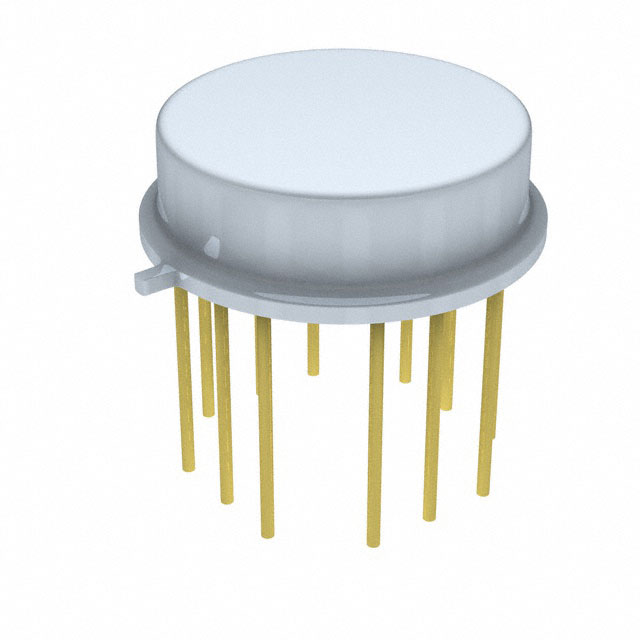

| Package / Case | TO-8 Style, 12 Leads |
| Output Type | - |
| Mounting Type | Through Hole |
| Amplifier Type | General Purpose |
| Operating Temperature | 0°C ~ 75°C |
| Current - Supply | 11mA |
| Slew Rate | 300V/µs |
| Gain Bandwidth Product | 40 MHz |
| Current - Input Bias | 3.5 µA |
| Voltage - Input Offset | 500 µV |
| Supplier Device Package | TO-8-12 |
| Number of Circuits | 1 |
| Current - Output / Channel | 50 mA |
| Voltage - Supply Span (Min) | 10 V |
| Voltage - Supply Span (Max) | 36 V |
