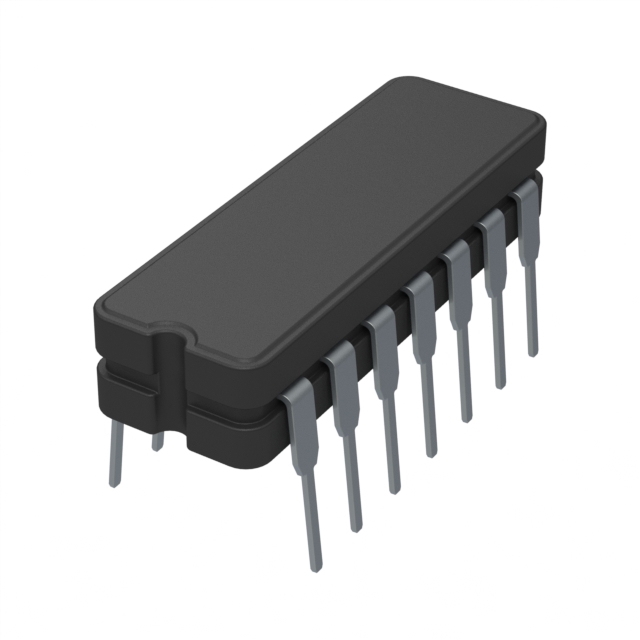

AD841JQ
IC OPAMP GP 40MHZ 50MA 14CDIPManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc. AD841JQ is a general-purpose operational amplifier featuring a 40 MHz gain bandwidth product and a high slew rate of 300 V/µs. This single-circuit amplifier is housed in a 14-CERDIP package, suitable for through-hole mounting. It operates with a supply voltage range from 10V to 36V, drawing a quiescent supply current of 11 mA. The device offers a significant output current capability of 50 mA per channel and an input bias current of 3.5 µA. The input offset voltage is a nominal 800 µV. This component finds application in instrumentation and buffering circuits within the industrial and consumer electronics sectors.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-CDIP (0.300"", 7.62mm) |
| Output Type | - |
| Mounting Type | Through Hole |
| Amplifier Type | General Purpose |
| Operating Temperature | 0°C ~ 75°C |
| Current - Supply | 11mA |
| Slew Rate | 300V/µs |
| Gain Bandwidth Product | 40 MHz |
| Current - Input Bias | 3.5 µA |
| Voltage - Input Offset | 800 µV |
| Supplier Device Package | 14-CERDIP |
| Number of Circuits | 1 |
| Current - Output / Channel | 50 mA |
| Voltage - Supply Span (Min) | 10 V |
| Voltage - Supply Span (Max) | 36 V |
