AD8390ACP-R2
IC AMP DIFF LP LDIST 16LFCSPManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc. AD8390ACP-R2 is a high-performance, single-circuit differential amplifier. Featuring a 60 MHz -3dB bandwidth and a 300V/µs slew rate, this component is designed for demanding applications requiring precise signal conditioning. It offers a low input bias current of 4 µA and a substantial output current capability of 400 mA per channel. The amplifier operates from a supply voltage range of 10V to 24V with a typical quiescent current of 10 mA. Encased in a compact 16-LFCSP (4x4) package, it is suitable for surface mount assembly. The AD8390ACP-R2 finds utility in instrumentation, signal processing, and high-speed data acquisition systems where accurate differential amplification is critical. It operates within an industrial temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |

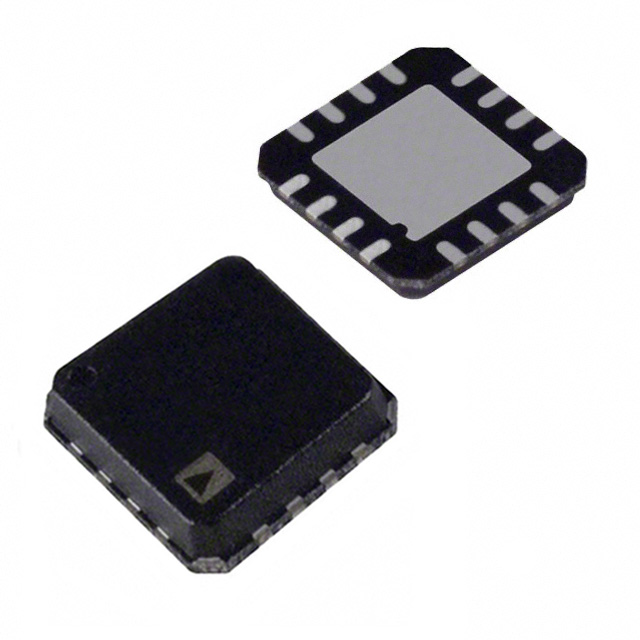

| Package / Case | 16-VQFN Exposed Pad, CSP |
| Output Type | Differential |
| Mounting Type | Surface Mount |
| Amplifier Type | Differential |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 10mA |
| Slew Rate | 300V/µs |
| Current - Input Bias | 4 µA |
| Voltage - Input Offset | 1 mV |
| Supplier Device Package | 16-LFCSP (4x4) |
| Number of Circuits | 1 |
| Current - Output / Channel | 400 mA |
| -3db Bandwidth | 60 MHz |
| Voltage - Supply Span (Min) | 10 V |
| Voltage - Supply Span (Max) | 24 V |
