AD8370ARE-REEL7
IC VARIABLE GAIN 1 CIRC 16TSSOPManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc. AD8370ARE-REEL7 is a single-circuit, variable gain amplifier designed for high-speed applications. This component features a differential input and output, offering a -3dB bandwidth of 750 MHz and a slew rate of 5750 V/µs. Optimized for precision and performance, it operates within a supply voltage span of 3V to 5.5V with a typical supply current of 79mA. The device exhibits a low input bias current of 400 pA. The AD8370ARE-REEL7 is supplied in a 16-TSSOP-EP (Exposed Pad) package, suitable for surface mounting. Its robust specifications make it ideal for use in test and measurement equipment, medical imaging, and high-frequency signal processing systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

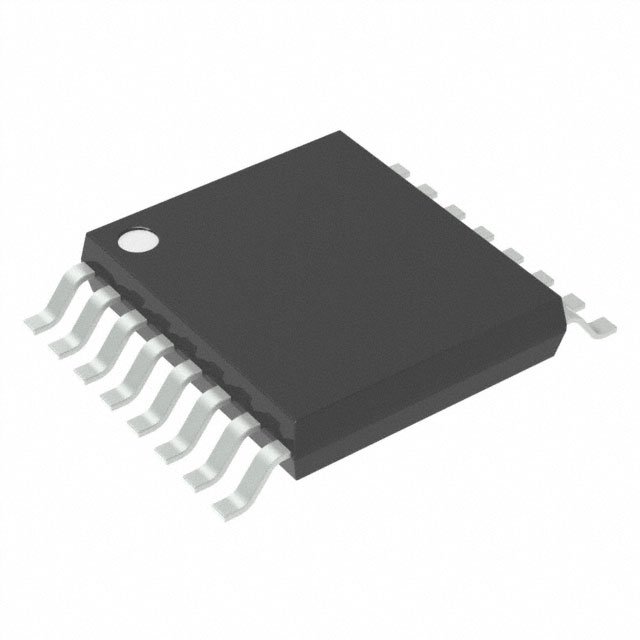

| Package / Case | 16-TSSOP (0.173"", 4.40mm Width) Exposed Pad |
| Output Type | Differential |
| Mounting Type | Surface Mount |
| Amplifier Type | Variable Gain |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 79mA |
| Slew Rate | 5750V/µs |
| Current - Input Bias | 400 pA |
| Supplier Device Package | 16-TSSOP-EP |
| Number of Circuits | 1 |
| -3db Bandwidth | 750 MHz |
| Voltage - Supply Span (Min) | 3 V |
| Voltage - Supply Span (Max) | 5.5 V |
