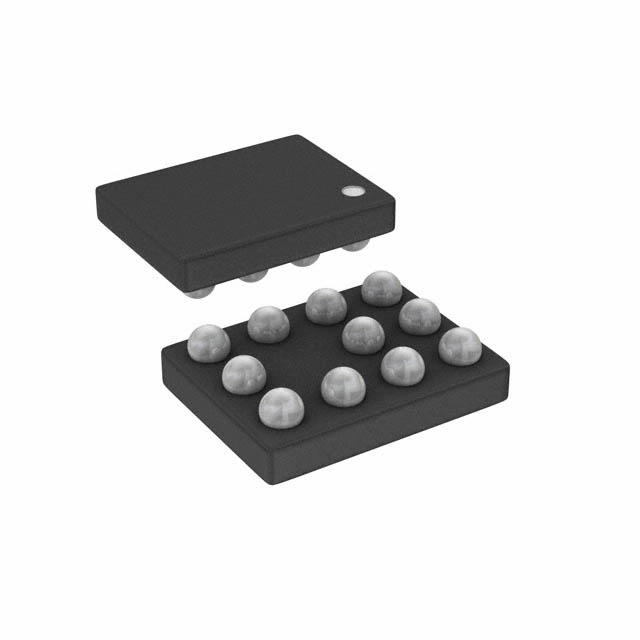

AD8235ACBZ-P7
IC INST AMP 1 CIRCUIT 11WLCSPManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Instrumentation Amplifier 1 Circuit Rail-to-Rail 11-WLCSP (1.57x2.04)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Strip |
| Package / Case | 11-WFBGA, WLCSP |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | Instrumentation |
| Operating Temperature | -40°C ~ 125°C |
| Current - Supply | 30µA |
| Slew Rate | 0.011V/µs |
| Current - Input Bias | 1 pA |
| Voltage - Input Offset | 2.5 mV |
| Supplier Device Package | 11-WLCSP (1.57x2.04) |
| Number of Circuits | 1 |
| Current - Output / Channel | 55 mA |
| -3db Bandwidth | 23 kHz |
| Voltage - Supply Span (Min) | 1.8 V |
| Voltage - Supply Span (Max) | 5.5 V |
Request a Quote
