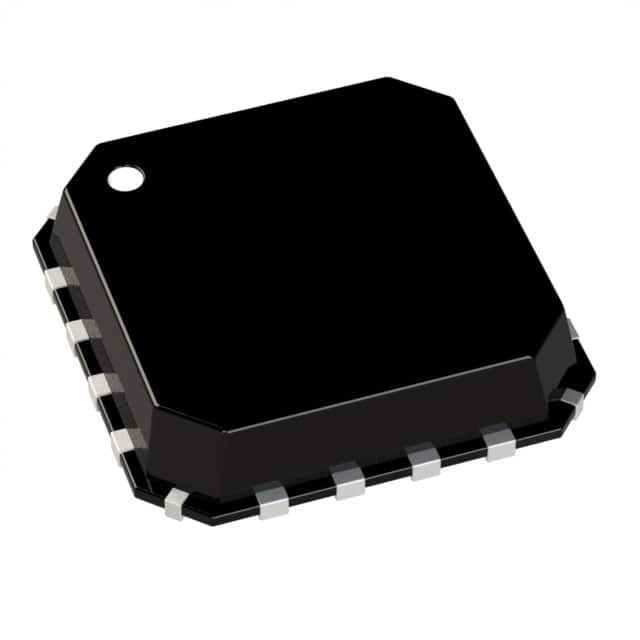

AD8222HBCPZ-RL
IC INST AMP 2 CIRCUIT 16LFCSPManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc. AD8222HBCPZ-RL is a dual-channel instrumentation amplifier featuring a 7 MHz gain bandwidth product and a 1.2 MHz -3dB bandwidth. This device offers a low input bias current of 200 pA and a low input offset voltage of 60 µV, making it suitable for precision measurement applications. The AD8222HBCPZ-RL operates from a supply voltage span of 4.6 V to 36 V and consumes 900 µA per channel. Its 16-LFCSP-VQ (4x4) package is designed for surface mounting. Key specifications include an 18 mA output current per channel and a 2 V/µs slew rate. This component finds application in industries such as medical devices and industrial automation. The product is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-VQFN, CSP |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | Instrumentation |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 900µA (x2 Channels) |
| Slew Rate | 2V/µs |
| Gain Bandwidth Product | 7 MHz |
| Current - Input Bias | 200 pA |
| Voltage - Input Offset | 60 µV |
| Supplier Device Package | 16-LFCSP-VQ (4x4) |
| Number of Circuits | 2 |
| Current - Output / Channel | 18 mA |
| -3db Bandwidth | 1.2 MHz |
| Voltage - Supply Span (Min) | 4.6 V |
| Voltage - Supply Span (Max) | 36 V |
Request a Quote
