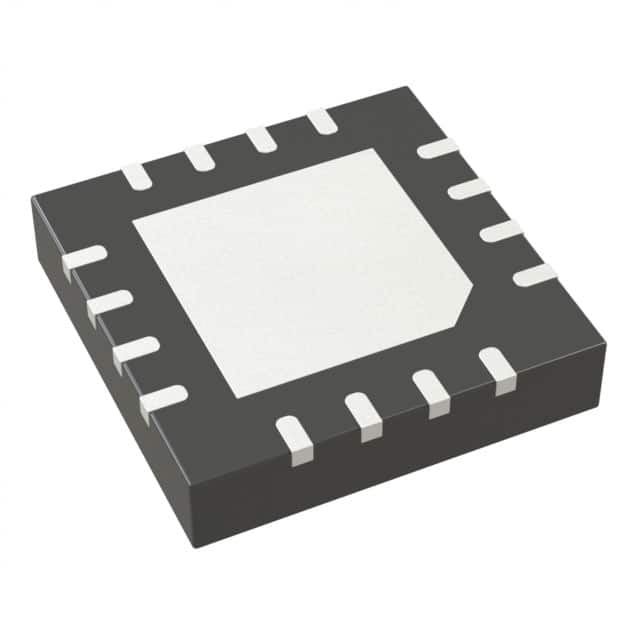

AD8222BCPZ-RL
IC INST AMP 2 CIRCUIT 16LFCSPManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc. AD8222BCPZ-RL is a dual-channel instrumentation amplifier designed for high-precision signal conditioning. This device features a low input bias current of 200 pA and a low input offset voltage of 60 µV, making it suitable for applications requiring minimal signal degradation. The AD8222 offers a 7 MHz gain bandwidth product and a -3dB bandwidth of 1.2 MHz, supporting a wide dynamic range. Its low quiescent current of 900 µA per channel contributes to power efficiency in battery-operated systems.
The AD8222BCPZ-RL is housed in a 16-LFCSP (4x4) package, designed for surface mounting. It operates across a supply voltage span from 4.6 V to 36 V and supports a slew rate of 2 V/µs. This instrumentation amplifier finds application in medical equipment, industrial automation, and data acquisition systems where accurate amplification of small differential signals is critical. The component is supplied in tape and reel for automated assembly processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WQFN Exposed Pad, CSP |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | Instrumentation |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 900µA (x2 Channels) |
| Slew Rate | 2V/µs |
| Gain Bandwidth Product | 7 MHz |
| Current - Input Bias | 200 pA |
| Voltage - Input Offset | 60 µV |
| Supplier Device Package | 16-LFCSP (4x4) |
| Number of Circuits | 2 |
| Current - Output / Channel | 18 mA |
| -3db Bandwidth | 1.2 MHz |
| Voltage - Supply Span (Min) | 4.6 V |
| Voltage - Supply Span (Max) | 36 V |
