AD8133ACP-REEL7
IC OPAMP DIFF TRPL LDIST 24LFCSPManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc. AD8133ACP-REEL7 is a triple, high-speed, low-distortion differential amplifier. This component offers a -3dB bandwidth of 450 MHz and a remarkable slew rate of 1600V/µs, making it suitable for demanding signal processing applications. Operating from a 4.5V to 12V supply, it draws a supply current of 28mA. The input bias current is 67µA, with an input offset voltage of 6mV. Each channel can deliver an output current of 90mA.

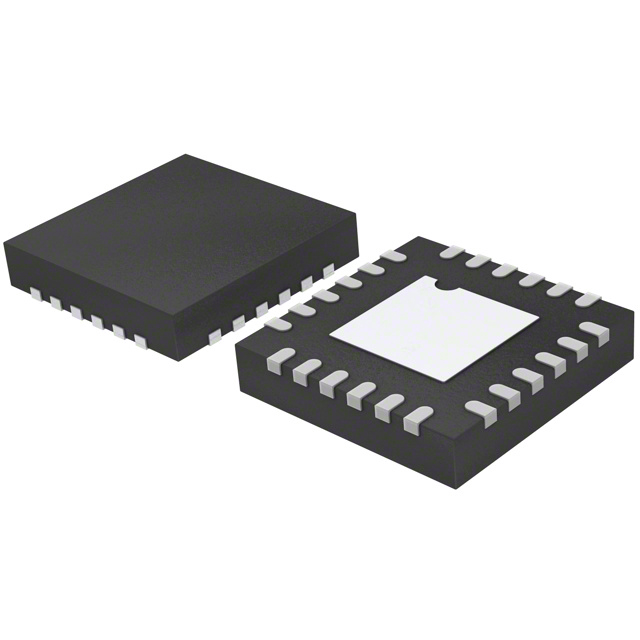

The AD8133ACP-REEL7 is configured with three differential amplifier circuits. It is supplied in a 24-LFCSP-WQ (4x4) package, designed for surface mounting. This device finds utility in applications requiring high-performance signal amplification and conditioning across various industries, including test and measurement, medical imaging, and high-speed data acquisition systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 24-WFQFN Exposed Pad, CSP |
| Output Type | Differential |
| Mounting Type | Surface Mount |
| Amplifier Type | Differential |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 28mA |
| Slew Rate | 1600V/µs |
| Current - Input Bias | 67 µA |
| Voltage - Input Offset | 6 mV |
| Supplier Device Package | 24-LFCSP-WQ (4x4) |
| Number of Circuits | 3 |
| Current - Output / Channel | 90 mA |
| -3db Bandwidth | 450 MHz |
| Voltage - Supply Span (Min) | 4.5 V |
| Voltage - Supply Span (Max) | 12 V |
