AD8099ACPZ-R2
IC OPAMP VFB 1 CIRCUIT 8LFCSPManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc. AD8099ACPZ-R2 is a single-circuit, voltage-feedback operational amplifier featuring a high -3dB bandwidth of 510 MHz and a rapid slew rate of 1350 V/µs. This component is designed for demanding applications requiring high speed and precision. Its low input bias current of 6 µA and output current capability of 178 mA per channel make it suitable for driving loads effectively. The device operates over a supply voltage range of 5 V to 12 V, with a typical quiescent current of 15 mA. The AD8099ACPZ-R2 is presented in an 8-LFCSP (3x3) surface-mount package, supplied on tape and reel. This amplifier is frequently utilized in high-speed signal processing, video amplification, and medical imaging systems. The internal voltage offset is specified at 100 µV, ensuring accurate signal amplification.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

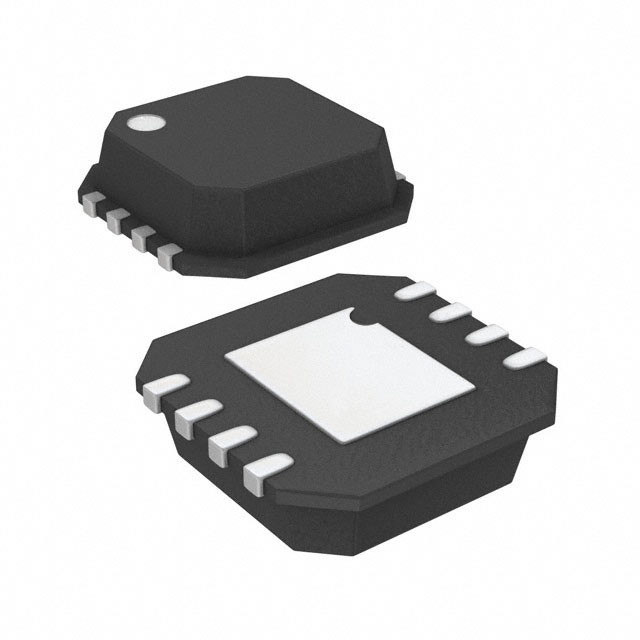

| Package / Case | 8-VFDFN Exposed Pad, CSP |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | Voltage Feedback |
| Operating Temperature | -40°C ~ 125°C |
| Current - Supply | 15mA |
| Slew Rate | 1350V/µs |
| Current - Input Bias | 6 µA |
| Voltage - Input Offset | 100 µV |
| Supplier Device Package | 8-LFCSP (3x3) |
| Number of Circuits | 1 |
| Current - Output / Channel | 178 mA |
| -3db Bandwidth | 510 MHz |
| Voltage - Supply Span (Min) | 5 V |
| Voltage - Supply Span (Max) | 12 V |
