AD8030ARJZ-R2

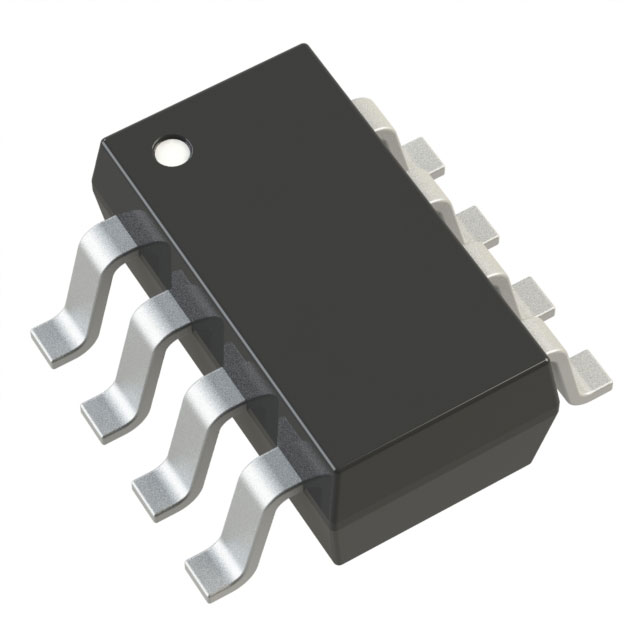

IC OPAMP GP 2 CIRCUIT SOT23-8Manufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
The Analog Devices Inc. AD8030ARJZ-R2 is a high-performance, general-purpose operational amplifier featuring two internally compensated circuits. This device boasts a 125 MHz -3dB bandwidth and a 63 V/µs slew rate, making it suitable for demanding applications. Its rail-to-rail output stage maximizes dynamic range. Designed for surface mount, it is supplied in a SOT-23-8 package on tape and reel. Key specifications include a low supply current of 1.4mA per channel and an input bias current of 700 nA. The AD8030ARJZ-R2 operates over a wide temperature range of -40°C to 125°C and supports supply voltages from 2.7V to 12V. This component finds application in industrial automation and medical instrumentation.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23-8 |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C |
| Current - Supply | 1.4mA (x2 Channels) |
| Slew Rate | 63V/µs |
| Current - Input Bias | 700 nA |
| Voltage - Input Offset | 1.6 mV |
| Supplier Device Package | SOT-23-8 |
| Number of Circuits | 2 |
| Current - Output / Channel | 170 mA |
| -3db Bandwidth | 125 MHz |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 12 V |
