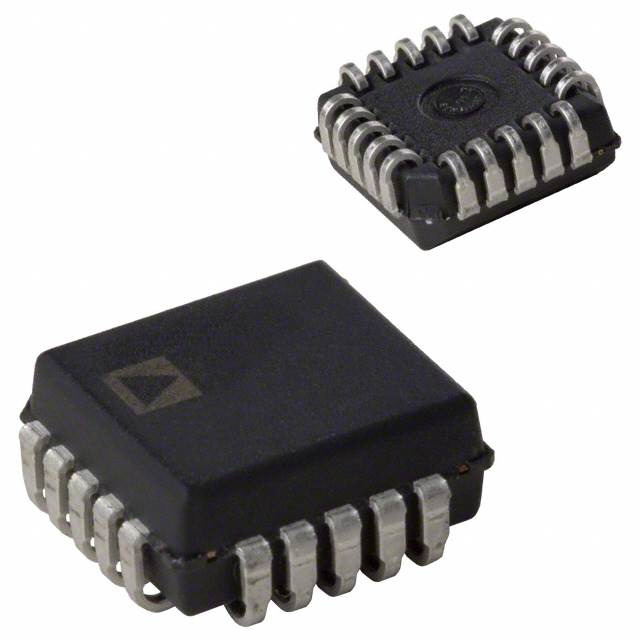

AD640BPZ
IC LOGARITHMIC 1 CIRCUIT 20PLCCManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc. AD640BPZ is a single-circuit logarithmic amplifier designed for demanding signal processing applications. This component features a 350 MHz -3dB bandwidth, enabling high-speed operation. It is housed in a 20-PLCC (9x9) surface-mount package, suitable for automated assembly. With a typical input bias current of 7 µA and an output current of 2.3 mA, the AD640BPZ offers precise control in various measurement and control systems. The device operates within a supply voltage range of 9 V to 15 V and a temperature range of -40°C to 85°C. This logarithmic amplifier is commonly utilized in applications such as radar systems, medical imaging, and communication infrastructure.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-LCC (J-Lead) |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | Logarithmic |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 35mA |
| Slew Rate | - |
| Current - Input Bias | 7 µA |
| Voltage - Input Offset | 50 µV |
| Supplier Device Package | 20-PLCC (9x9) |
| Number of Circuits | 1 |
| Current - Output / Channel | 2.3 mA |
| -3db Bandwidth | 350 MHz |
| Voltage - Supply Span (Min) | 9 V |
| Voltage - Supply Span (Max) | 15 V |
