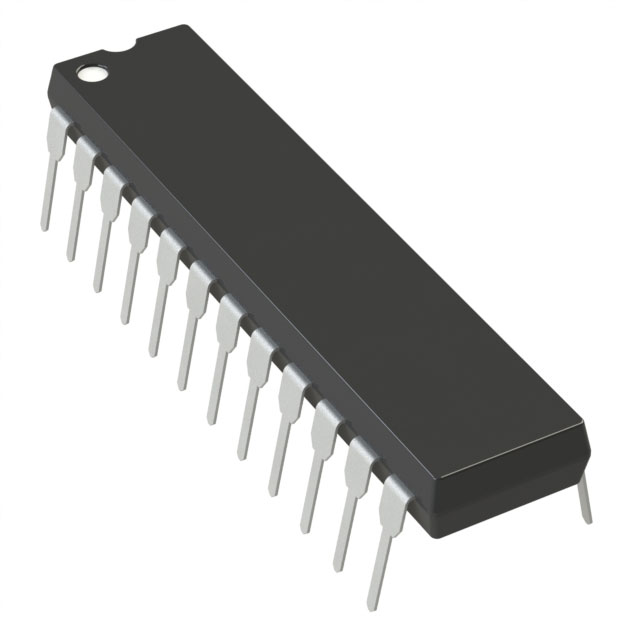

AD604AN
IC AMP VGA DUAL ULN 40MA 24DIPManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc. X-AMP® AD604AN is a dual, low-noise, variable gain amplifier designed for high-speed signal processing applications. This component offers a 40 MHz -3dB bandwidth and a 170 V/µs slew rate, making it suitable for demanding instrumentation and communication systems. The AD604AN features independent gain control for each of its two channels, providing flexibility in signal conditioning. Its 24-PDIP package with through-hole mounting facilitates easy integration into existing circuit designs. The device operates with a supply voltage of 5V and consumes a typical current of 32mA. Applications include radar and sonar systems, medical imaging, and automatic test equipment.
Additional Information
Series: X-AMP®RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 24-DIP (0.300"", 7.62mm) |
| Output Type | - |
| Mounting Type | Through Hole |
| Amplifier Type | Variable Gain |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 32mA |
| Slew Rate | 170V/µs |
| Current - Input Bias | 400 nA |
| Voltage - Input Offset | 30 mV |
| Supplier Device Package | 24-PDIP |
| Number of Circuits | 2 |
| Current - Output / Channel | 40 mA |
| -3db Bandwidth | 40 MHz |
| Voltage - Supply Span (Min) | 5 V |
| Voltage - Supply Span (Max) | 5 V |
