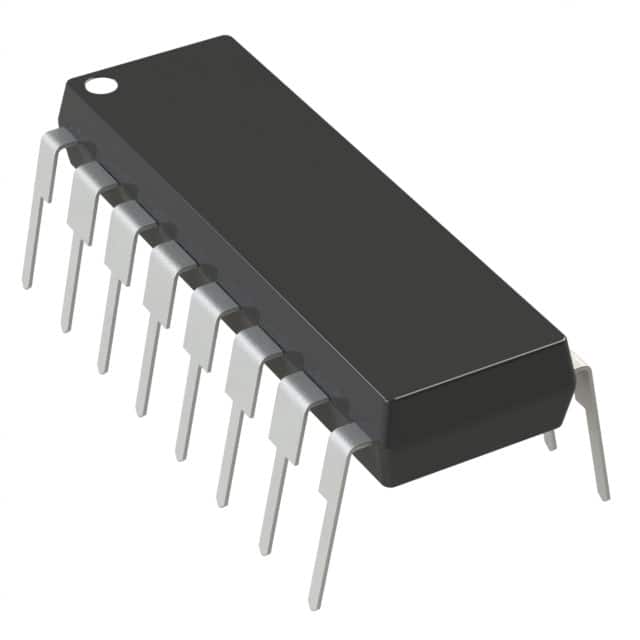

AD600JNZ
IC VARIABLE GAIN 2 CIRCUIT 16DIPManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Variable Gain Amplifier 2 Circuit 16-PDIP
Additional Information
Series: X-AMP®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-DIP (0.300"", 7.62mm) |
| Output Type | - |
| Mounting Type | Through Hole |
| Amplifier Type | Variable Gain |
| Operating Temperature | 0°C ~ 70°C |
| Current - Supply | 11mA (x2 Channels) |
| Slew Rate | 275V/µs |
| Current - Input Bias | 350 nA |
| Supplier Device Package | 16-PDIP |
| Number of Circuits | 2 |
| Current - Output / Channel | 50 mA |
| -3db Bandwidth | 35 MHz |
| Voltage - Supply Span (Min) | 9.5 V |
| Voltage - Supply Span (Max) | 10.5 V |
