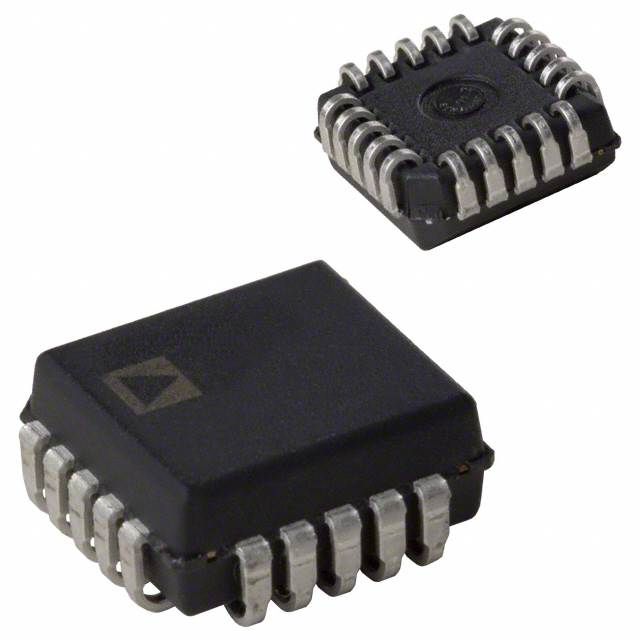

AD585JPZ
IC SAMPL/HOLD 1 CIRCUIT 20PLCCManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc. AD585JPZ is a high-precision, monolithic sample-and-hold amplifier. This device features a 2 MHz -3dB bandwidth and a 10V/µs slew rate, making it suitable for demanding data acquisition systems. With a single circuit, it provides a 5 mV input offset voltage and a low 2 nA input bias current. The device operates from a single or dual power supply with a span of 10V to 36V and consumes 10 mA of quiescent current. Its output current capability is 50 mA. The AD585JPZ is packaged in a 20-PLCC (9x9) surface-mount configuration. This component finds application in instrumentation and data acquisition across various industrial sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 20-LCC (J-Lead) |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | Sample and Hold |
| Operating Temperature | 0°C ~ 70°C |
| Current - Supply | 10mA |
| Slew Rate | 10V/µs |
| Current - Input Bias | 2 nA |
| Voltage - Input Offset | 5 mV |
| Supplier Device Package | 20-PLCC (9x9) |
| Number of Circuits | 1 |
| Current - Output / Channel | 50 mA |
| -3db Bandwidth | 2 MHz |
| Voltage - Supply Span (Min) | 10 V |
| Voltage - Supply Span (Max) | 36 V |
