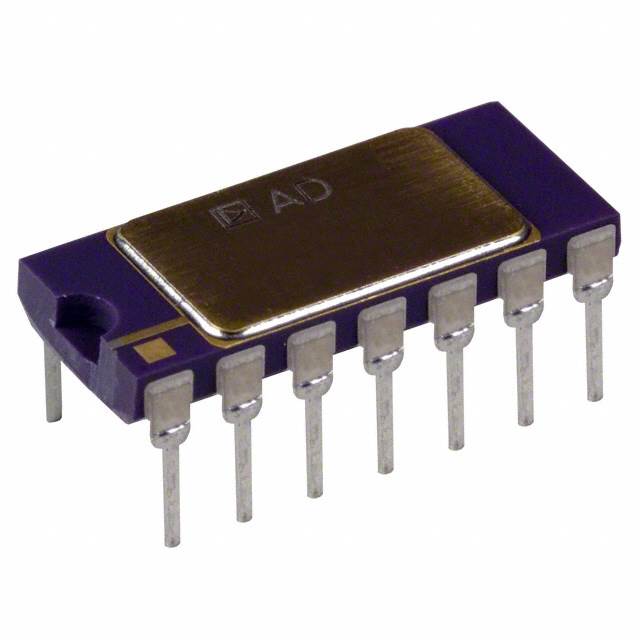

AD521LD
IC AMP INST 40MHZ PREC LN 14CDIPManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
The Analog Devices Inc. AD521LD is a precision instrumentation amplifier designed for demanding applications. This single-circuit device, housed in a 14-CDIP package, offers a 2 MHz -3dB bandwidth and a 10V/µs slew rate, making it suitable for data acquisition systems, industrial process control, and medical instrumentation. It features a low input bias current of 40 nA and an input offset voltage of 1 mV, ensuring accurate signal conditioning. The AD521LD operates with a supply voltage span from 10 V to 36 V and consumes 5 mA of quiescent current. Its through-hole mounting facilitates integration into established PCB designs.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-CDIP (0.300"", 7.62mm) |
| Output Type | - |
| Mounting Type | Through Hole |
| Amplifier Type | Instrumentation |
| Operating Temperature | 0°C ~ 70°C |
| Current - Supply | 5mA |
| Slew Rate | 10V/µs |
| Current - Input Bias | 40 nA |
| Voltage - Input Offset | 1 mV |
| Supplier Device Package | 14-CDIP |
| Number of Circuits | 1 |
| -3db Bandwidth | 2 MHz |
| Voltage - Supply Span (Min) | 10 V |
| Voltage - Supply Span (Max) | 36 V |
