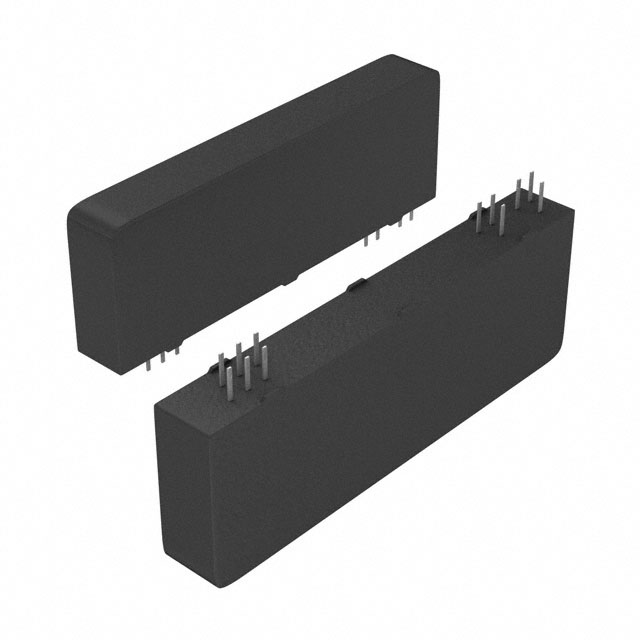

AD215BY
IC OPAMP ISOLATION 1 CIRC 12SIPManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc. AD215BY is a single-circuit isolation amplifier designed for high-precision signal conditioning. This component offers a 120 kHz -3dB bandwidth and a 6 V/µs slew rate, making it suitable for demanding industrial and medical applications. Featuring low input bias current of 300 pA and an input offset voltage of 400 µV, it ensures accurate signal amplification. The AD215BY operates from a supply voltage span of 28.5 V to 34 V with a typical supply current of 40 mA. Its 12-lead, 12-SIP package with offset leads is designed for through-hole mounting. This isolation amplifier is commonly utilized in motor control, power supply monitoring, and medical instrumentation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 44-SIP, 12 Leads, Offset Leads |
| Output Type | - |
| Mounting Type | Through Hole |
| Amplifier Type | Isolation |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 40mA |
| Slew Rate | 6V/µs |
| Current - Input Bias | 300 pA |
| Voltage - Input Offset | 400 µV |
| Supplier Device Package | 12-SIP |
| Number of Circuits | 1 |
| Current - Output / Channel | 5 mA |
| -3db Bandwidth | 120 kHz |
| Voltage - Supply Span (Min) | 28.5 V |
| Voltage - Supply Span (Max) | 34 V |
