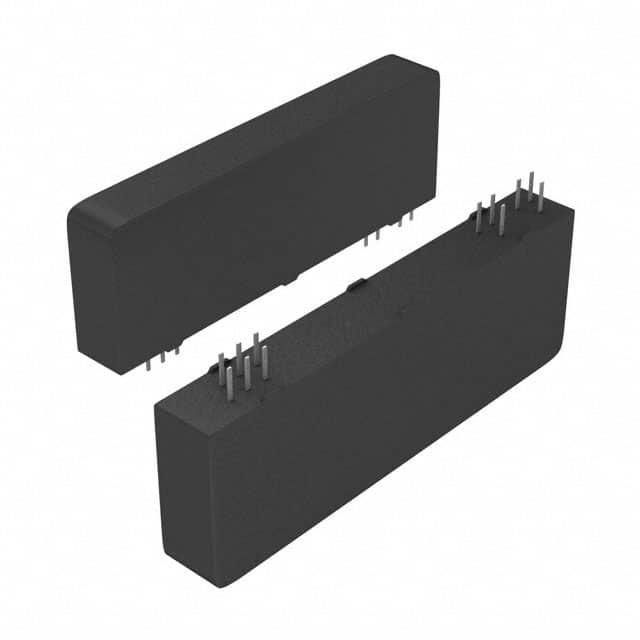

AD215AY
IC OPAMP ISOLATION 1 CIRC 12SIPManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices AD215AY is a single-channel isolation amplifier housed in a 12-SIP package, designed for robust signal acquisition in demanding environments. This component offers a 120 kHz -3dB bandwidth and a 6V/µs slew rate, ensuring accurate signal processing. It features a low input bias current of 300 pA and an input offset voltage of 400 µV, critical for high-precision measurements. The AD215AY operates across a supply voltage span from 28.5 V to 34 V, with a typical supply current of 40 mA. Its through-hole mounting style and 12-lead SIP package facilitate integration into various system architectures. This isolation amplifier is widely utilized in industrial automation, medical instrumentation, and data acquisition systems where signal integrity and user safety are paramount.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 44-SIP, 12 Leads, Offset Leads |
| Output Type | - |
| Mounting Type | Through Hole |
| Amplifier Type | Isolation |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 40mA |
| Slew Rate | 6V/µs |
| Current - Input Bias | 300 pA |
| Voltage - Input Offset | 400 µV |
| Supplier Device Package | 12-SIP |
| Number of Circuits | 1 |
| Current - Output / Channel | 5 mA |
| -3db Bandwidth | 120 kHz |
| Voltage - Supply Span (Min) | 28.5 V |
| Voltage - Supply Span (Max) | 34 V |
