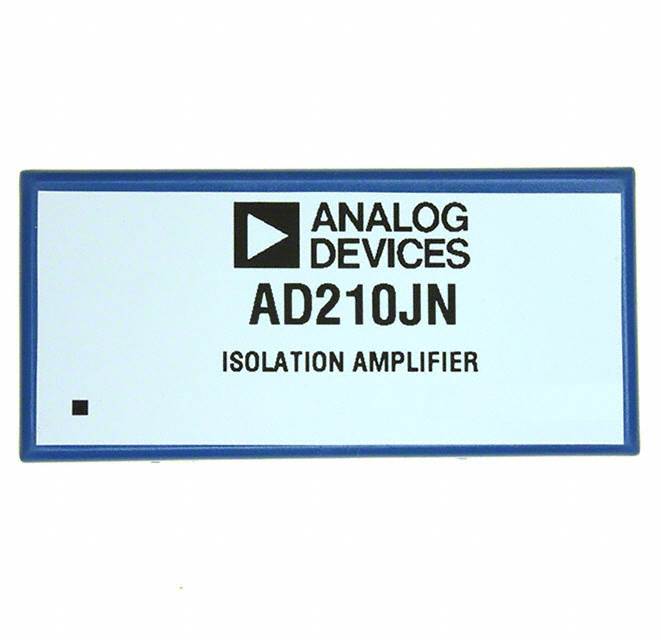

AD210JN
IC OPAMP ISOLATION 1 CIRC 12DIPManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc. AD210JN is a precision isolation amplifier in a 12-PDIP package, designed for robust performance in demanding applications. This single-circuit amplifier offers a 20 kHz -3dB bandwidth and a 1V/µs slew rate, making it suitable for instrumentation and data acquisition systems. Key specifications include a low 30 pA input bias current and a 5 mA output current capability. The device operates within a supply voltage span of 14.25 V to 15.75 V and a temperature range of -25°C to 85°C. Its through-hole mounting facilitates easy integration into circuit designs. The AD210JN finds utility in industrial control, medical instrumentation, and power monitoring sectors where signal integrity across isolation barriers is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 38-DIP (0.800"", 20.32mm), 12 Leads |
| Output Type | - |
| Mounting Type | Through Hole |
| Amplifier Type | Isolation |
| Operating Temperature | -25°C ~ 85°C |
| Current - Supply | 50mA |
| Slew Rate | 1V/µs |
| Current - Input Bias | 30 pA |
| Voltage - Input Offset | 15 mV |
| Supplier Device Package | 12-PDIP |
| Number of Circuits | 1 |
| Current - Output / Channel | 5 mA |
| -3db Bandwidth | 20 kHz |
| Voltage - Supply Span (Min) | 14.25 V |
| Voltage - Supply Span (Max) | 15.75 V |
Request a Quote
