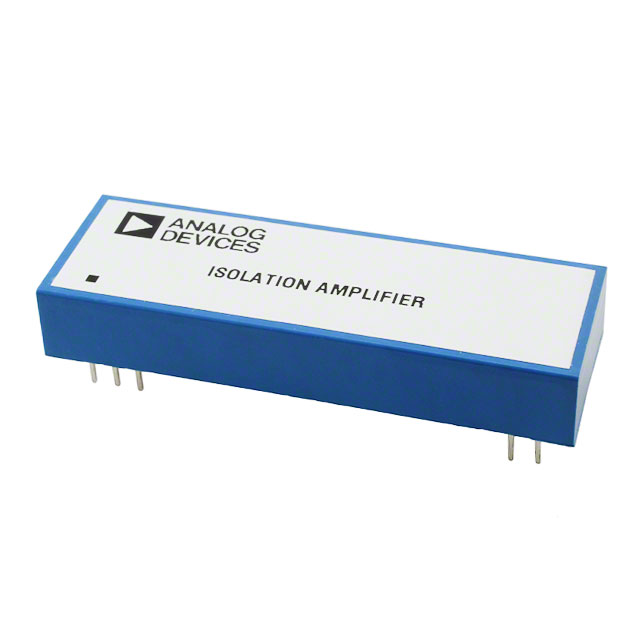

AD204KN
IC OPAMP ISOLATION 2 CIRC 11DIPManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc. AD204KN is a dual-channel isolation amplifier designed for robust performance in demanding industrial environments. This component, packaged in an 11-PDIP (38-DIP) through-hole configuration, offers excellent isolation capabilities essential for protecting sensitive downstream circuitry from high common-mode voltages. With a low input bias current of 30 pA and a gain bandwidth product of 5 kHz, the AD204KN is well-suited for precision measurement and control applications. The device operates across a temperature range of -40°C to 85°C, supporting a supply voltage span from 13.5V to 16.5V. Its architecture is optimized for applications in industrial automation, medical instrumentation, and test and measurement equipment where signal integrity and safety are paramount.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 38-DIP (0.600"", 15.24mm), 11 Leads |
| Output Type | - |
| Mounting Type | Through Hole |
| Amplifier Type | Isolation |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | - |
| Slew Rate | - |
| Gain Bandwidth Product | 5 kHz |
| Current - Input Bias | 30 pA |
| Voltage - Input Offset | 5 mV |
| Supplier Device Package | 11-PDIP |
| Number of Circuits | 2 |
| Current - Output / Channel | 2 mA |
| Voltage - Supply Span (Min) | 13.5 V |
| Voltage - Supply Span (Max) | 16.5 V |
