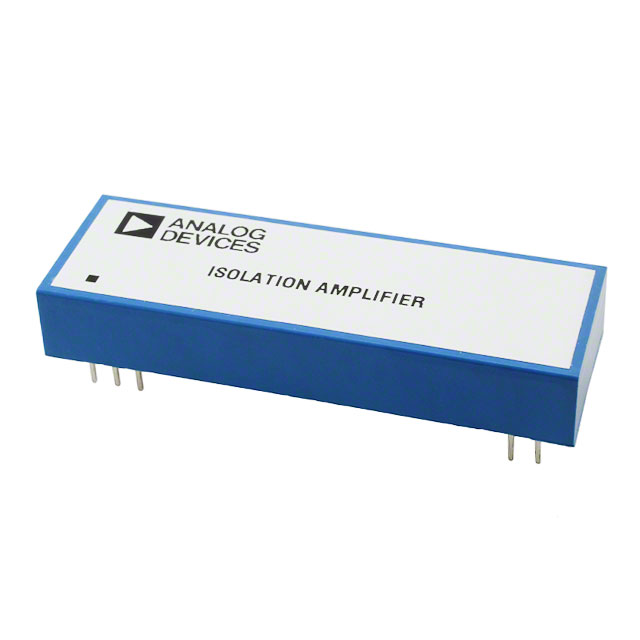

AD204JN
IC OPAMP ISOLATION 2 CIRC 11DIPManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc. AD204JN is a dual-circuit isolation amplifier housed in an 11-PDIP package. This component is designed for through-hole mounting and operates within a temperature range of -40°C to 85°C. It features a low input bias current of 30 pA and a gain bandwidth product of 5 kHz. The AD204JN is suitable for applications requiring signal isolation in industrial automation, medical equipment, and test and measurement systems. The device supports a minimum supply voltage span of 13.5 V and a maximum of 16.5 V.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 38-DIP (0.600"", 15.24mm), 11 Leads |
| Output Type | - |
| Mounting Type | Through Hole |
| Amplifier Type | Isolation |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | - |
| Slew Rate | - |
| Gain Bandwidth Product | 5 kHz |
| Current - Input Bias | 30 pA |
| Voltage - Input Offset | 15 mV |
| Supplier Device Package | 11-PDIP |
| Number of Circuits | 2 |
| Current - Output / Channel | 2 mA |
| Voltage - Supply Span (Min) | 13.5 V |
| Voltage - Supply Span (Max) | 16.5 V |
