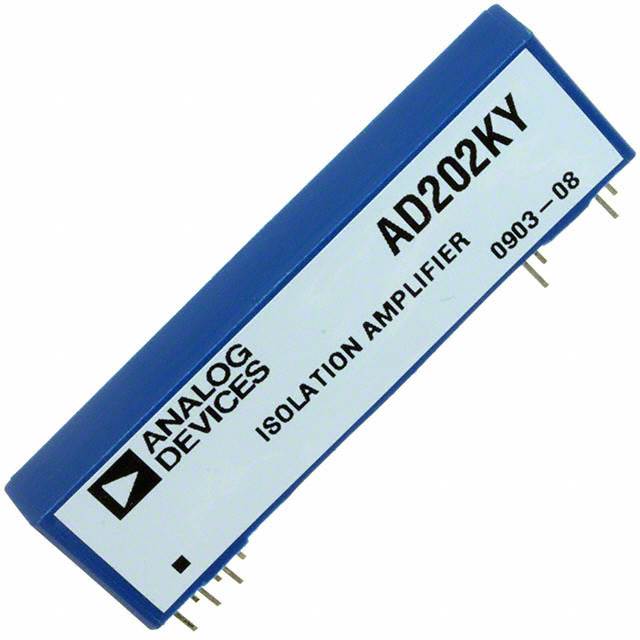

AD202KY
IC OPAMP ISOLATION 2 CIRC 11SIPManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc. AD202KY is a dual-channel isolation amplifier packaged in an 11-SIP (Single In-line Package) configuration. This component is designed for robust signal isolation in demanding environments. It features a low input bias current of 30 pA and an output current of 400 µA per channel. The AD202KY operates within a supply voltage span of 13.5 V to 16.5 V, with a typical supply current of 5 mA. Its gain bandwidth product is 2 kHz, making it suitable for applications requiring precise signal measurement and transmission across isolated boundaries. The through-hole mounting type facilitates reliable integration into printed circuit boards. This isolation amplifier is commonly employed in industrial control systems, medical instrumentation, and test and measurement equipment where electrical isolation is critical for safety and signal integrity. The operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 38-SIP, 11 Leads, Offset Leads |
| Output Type | - |
| Mounting Type | Through Hole |
| Amplifier Type | Isolation |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 5mA |
| Slew Rate | - |
| Gain Bandwidth Product | 2 kHz |
| Current - Input Bias | 30 pA |
| Voltage - Input Offset | 5 mV |
| Supplier Device Package | 11-SIP |
| Number of Circuits | 2 |
| Current - Output / Channel | 400 µA |
| Voltage - Supply Span (Min) | 13.5 V |
| Voltage - Supply Span (Max) | 16.5 V |
