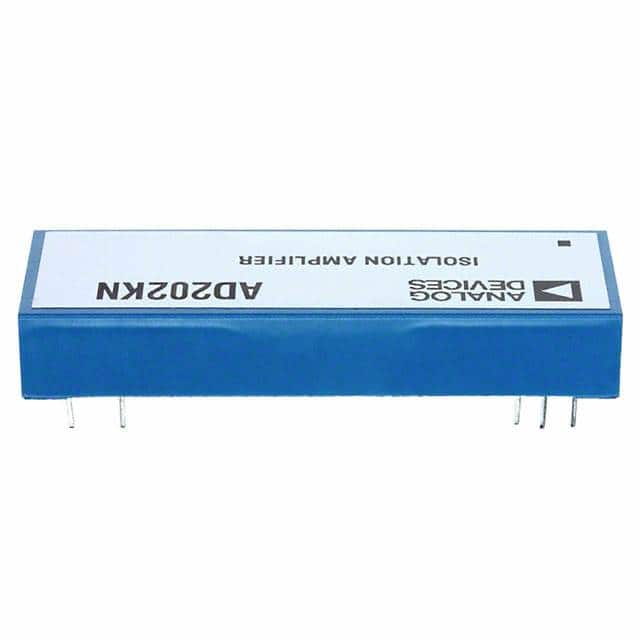

AD202KN
IC OPAMP ISOLATION 2 CIRC 11DIPManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc. AD202KN is a high-performance isolation amplifier featuring two independent circuits within an 11-PDIP package. This component is designed for robust signal acquisition in demanding environments. Key specifications include a low input bias current of 30 pA, essential for minimizing measurement errors in high-impedance signal chains. The device operates with a supply voltage span ranging from 13.5 V to 16.5 V and draws a quiescent current of 5 mA. Its 2 kHz gain bandwidth product makes it suitable for applications requiring accurate amplification of low-frequency signals. The AD202KN is through-hole mounted and rated for operation across a temperature range of -40°C to 85°C. This isolation amplifier finds application in industrial control systems, medical instrumentation, and data acquisition modules where common-mode voltage rejection and signal integrity are paramount.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 38-DIP (0.600"", 15.24mm), 11 Leads |
| Output Type | - |
| Mounting Type | Through Hole |
| Amplifier Type | Isolation |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 5mA |
| Slew Rate | - |
| Gain Bandwidth Product | 2 kHz |
| Current - Input Bias | 30 pA |
| Voltage - Input Offset | 5 mV |
| Supplier Device Package | 11-PDIP |
| Number of Circuits | 2 |
| Current - Output / Channel | 400 µA |
| Voltage - Supply Span (Min) | 13.5 V |
| Voltage - Supply Span (Max) | 16.5 V |
