AD202JN
IC OPAMP ISOLATION 2 CIRC 11DIPManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More

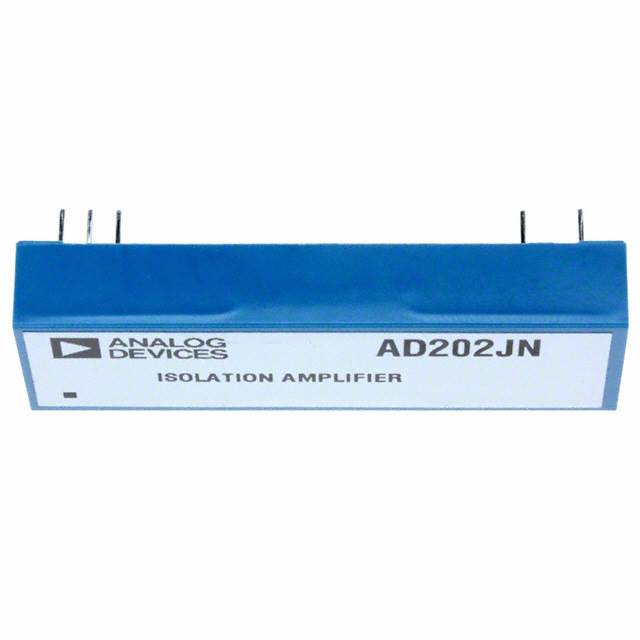

Analog Devices Inc. AD202JN Isolation Amplifier, a dual-circuit component, is designed for robust performance in demanding environments. This 11-lead PDIP package facilitates through-hole mounting for reliable integration into various electronic systems. Featuring an isolation amplifier architecture, it is suitable for applications requiring galvanic separation. The AD202JN offers a low input bias current of 30 pA and an output current of 400 µA per channel. With a supply current of 5 mA and a gain-bandwidth product of 2 kHz, it operates effectively across a temperature range of -40°C to 85°C. The device supports a supply voltage span from 13.5 V to 16.5 V and exhibits an input offset voltage of 15 mV. This component finds utility in industries such as medical instrumentation and industrial control systems where signal integrity and safety isolation are paramount.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 38-DIP (0.600"", 15.24mm), 11 Leads |
| Output Type | - |
| Mounting Type | Through Hole |
| Amplifier Type | Isolation |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 5mA |
| Slew Rate | - |
| Gain Bandwidth Product | 2 kHz |
| Current - Input Bias | 30 pA |
| Voltage - Input Offset | 15 mV |
| Supplier Device Package | 11-PDIP |
| Number of Circuits | 2 |
| Current - Output / Channel | 400 µA |
| Voltage - Supply Span (Min) | 13.5 V |
| Voltage - Supply Span (Max) | 16.5 V |
