5962-9095501M2A
IC AMP LOG 2.3MA 20CLCCManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc. 5962-9095501M2A is a single-circuit logarithmic amplifier designed for demanding applications. This component offers a 350 MHz -3dB bandwidth and a 2.3 mA output current. With an input bias current of 25 µA and an input offset voltage of 300 µV, it ensures precise signal conditioning. The device operates with a supply voltage range from 9 V to 15 V and a typical supply current of 60 mA. Encased in a 20-CLCC package, it is suitable for surface mounting and operates across a wide temperature range of -55°C to 125°C. This component finds application in instrumentation and test equipment.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |

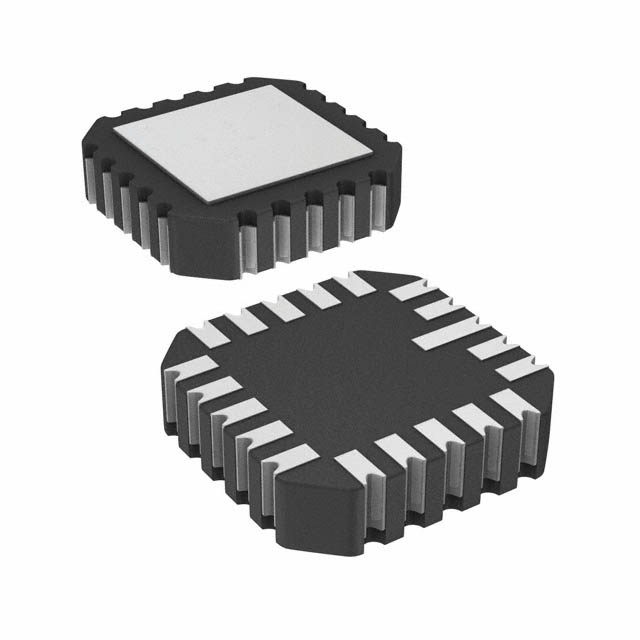

| Package / Case | 20-CLCC |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | Logarithmic |
| Operating Temperature | -55°C ~ 125°C |
| Current - Supply | 60mA |
| Slew Rate | - |
| Current - Input Bias | 25 µA |
| Voltage - Input Offset | 300 µV |
| Supplier Device Package | 20-CLCC (8.89x8.89) |
| Number of Circuits | 1 |
| Current - Output / Channel | 2.3 mA |
| -3db Bandwidth | 350 MHz |
| Voltage - Supply Span (Min) | 9 V |
| Voltage - Supply Span (Max) | 15 V |
