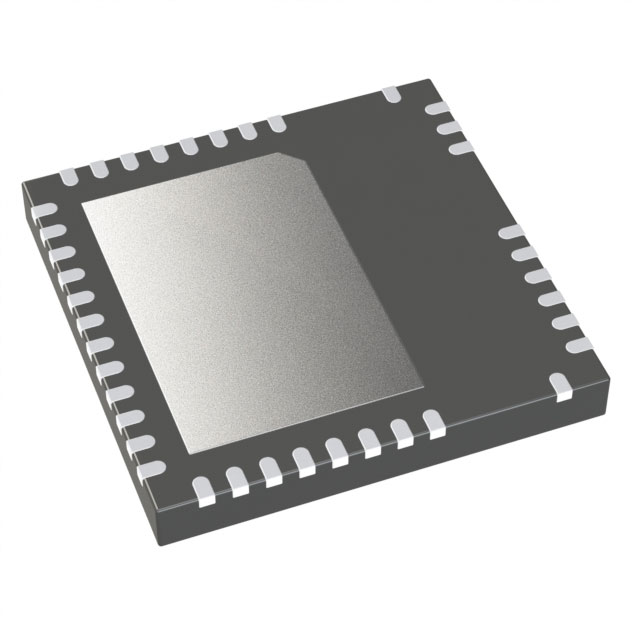

LTC4286AUK#TRPBF
HIGH VOLTAGE, HIGH POWER, PMBUSManufacturer: Analog Devices Inc.
Categories: Hot Swap Controllers
Quality Control: Learn More
Analog Devices Inc. LTC4286AUK-TRPBF is a high-voltage, high-power Hot Swap Controller designed for general-purpose applications. This component features a single channel and operates within a supply voltage range of 8.5V to 80V, with a current supply of 12mA. Key programmable features include circuit breaker functionality, current limiting, fault timeout, overvoltage protection (OVP), and undervoltage lockout (UVLO). Additional integrated features include auto-retry and latched fault mechanisms. The device is housed in a 48-QFN (7x7) package with an exposed pad and is supplied on tape and reel. Its robust design makes it suitable for demanding applications in industrial, telecommunications, and high-reliability computing environments. The operating temperature range is -40°C to 125°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Auto Retry, Fault Timeout, Latched Fault, OVP, SMBus, UVLO |
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-WFQFN Exposed Pad, 39 Leads |
| Mounting Type | Surface Mount |
| Type | Hot Swap Controller |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 8.5V ~ 80V |
| Applications | General Purpose |
| Internal Switch(s) | - |
| Current - Output (Max) | - |
| Supplier Device Package | 48-QFN (7x7) |
| Programmable Features | Circuit Breaker, Current Limit, Fault Timeout, OVP, UVLO |
| Grade | - |
| Number of Channels | 1 |
| Current - Supply | 12 mA |
| Qualification | - |
