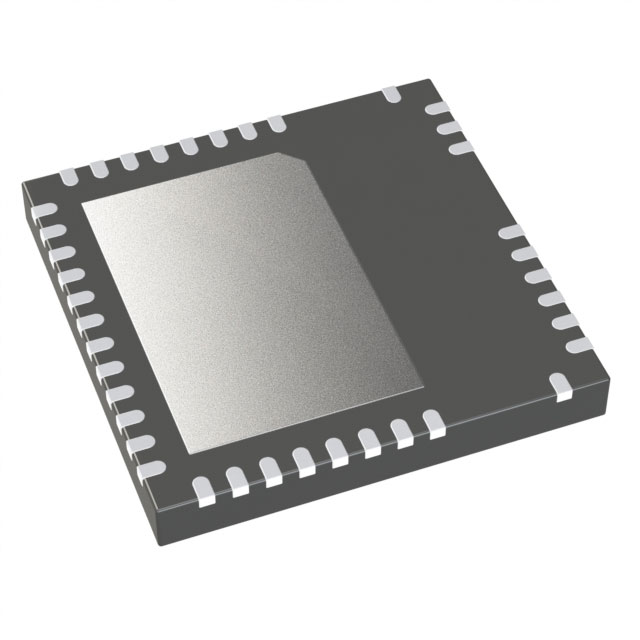

LTC4286AUK#PBF
HIGH VOLTAGE, HIGH POWER, PMBUSManufacturer: Analog Devices Inc.
Categories: Hot Swap Controllers
Quality Control: Learn More
Analog Devices Inc. LTC4286AUK-PBF is a versatile Hot Swap Controller designed for high-voltage, high-power applications. This general-purpose component features a single channel and operates across a wide supply voltage range of 8.5V to 80V. Key integrated features include auto-retry, fault timeout, latched fault protection, overvoltage protection (OVP), and undervoltage lockout (UVLO), all managed via SMBus. Programmable functionalities extend to circuit breaker, current limit, fault timeout, OVP, and UVLO. The LTC4286AUK-PBF is housed in a 48-QFN (7x7) package for surface mounting and operates within an industrial temperature range of -40°C to 125°C. This component is commonly utilized in industrial power systems, telecommunications infrastructure, and server power management.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Auto Retry, Fault Timeout, Latched Fault, OVP, SMBus, UVLO |
| Packaging | Tube |
| Package / Case | 48-WFQFN Exposed Pad, 39 Leads |
| Mounting Type | Surface Mount |
| Type | Hot Swap Controller |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 8.5V ~ 80V |
| Applications | General Purpose |
| Internal Switch(s) | - |
| Current - Output (Max) | - |
| Supplier Device Package | 48-QFN (7x7) |
| Programmable Features | Circuit Breaker, Current Limit, Fault Timeout, OVP, UVLO |
| Number of Channels | 1 |
| Current - Supply | 12 mA |
