LTC4283HUHF#TRPBF
IC HOT SWAP CTRLR GP 38QFNManufacturer: Analog Devices Inc.
Categories: Hot Swap Controllers
Quality Control: Learn More

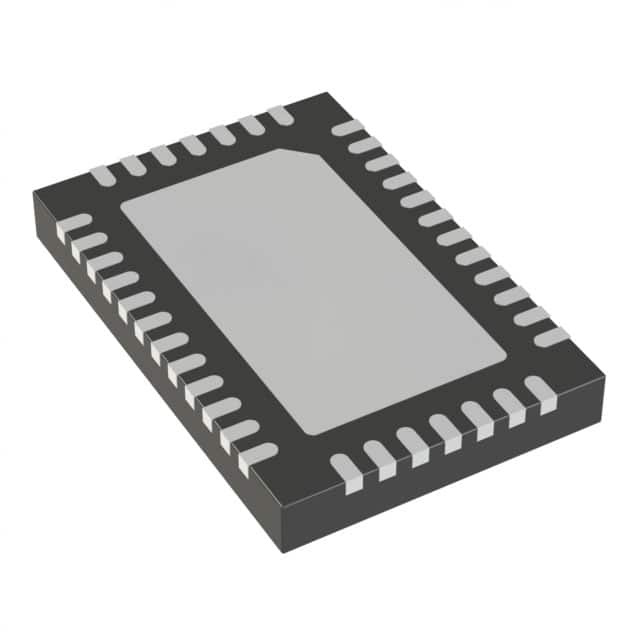

Analog Devices Inc. LTC4283HUHF-TRPBF is a single-channel general-purpose Hot Swap controller. This device operates within a supply voltage range of 10.8V to 12V and consumes a quiescent current of 2.5 mA. The LTC4283HUHF-TRPBF is housed in a 38-QFN (5x7) package with an exposed pad, suitable for surface mount applications. Key features include I2C interface for communication, Overvoltage Protection (OVP), and Undervoltage Lockout (UVLO). Programmable features encompass Auto Retry, Current Limit, Fault Timeout, and Latched Fault, providing robust system protection. This component is designed for applications requiring controlled power-up and protection in demanding environments, including industrial and telecommunications infrastructure. The operating temperature range is -40°C to 125°C (TA).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | I2C, OVP, UVLO |
| Packaging | Tape & Reel (TR) |
| Package / Case | 38-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Type | Hot Swap Controller |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Supply | 10.8V ~ 12V |
| Applications | General Purpose |
| Internal Switch(s) | No |
| Current - Output (Max) | - |
| Supplier Device Package | 38-QFN (5x7) |
| Programmable Features | Auto Retry, Current Limit, Fault Timeout, Latched Fault, OVP, UVLO |
| Number of Channels | 1 |
| Current - Supply | 2.5 mA |
