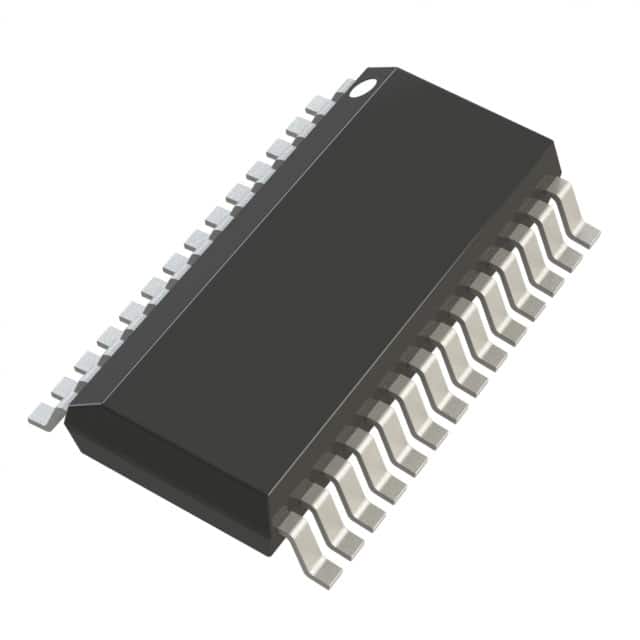

LTC4261CGN#TRPBF
IC HOT SWAP CTRLR -48V 28SSOPManufacturer: Analog Devices Inc.
Categories: Hot Swap Controllers
Quality Control: Learn More
Analog Devices Inc. LTC4261CGN-TRPBF is a single-channel Hot Swap Controller designed for -48V applications. This device facilitates safe insertion and removal of components from live backplanes. It features an I2C interface for control and monitoring, along with programmable protection features including Auto Retry, Current Limit, Fault Timeout, Latched Fault, Overvoltage Protection (OVP), and Undervoltage Lockout (UVLO). The LTC4261CGN-TRPBF operates with a supply current of 2 mA and a nominal -48V supply voltage. Its 28-SSOP package is suitable for surface mount installations. This controller is commonly employed in telecommunications infrastructure and data center power management systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | I2C |
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-SSOP (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Type | Hot Swap Controller, Monitor |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | -48V |
| Applications | -48V |
| Internal Switch(s) | No |
| Current - Output (Max) | - |
| Supplier Device Package | 28-SSOP |
| Programmable Features | Auto Retry, Current Limit, Fault Timeout, Latched Fault, OVP, UVLO |
| Number of Channels | 1 |
| Current - Supply | 2 mA |
Request a Quote
