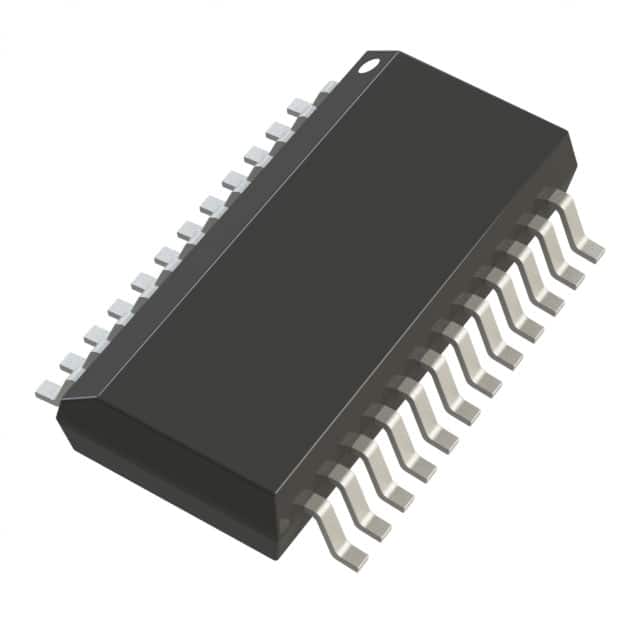

LTC4260IGN#TRPBF
IC HOT SWAP CTRLR GP 24SSOPManufacturer: Analog Devices Inc.
Categories: Hot Swap Controllers
Quality Control: Learn More
The Analog Devices Inc. LTC4260IGN-TRPBF is a general-purpose Hot Swap controller and monitor designed for robust power management. This component features a single channel with a broad operating voltage range of 8.5V to 80V and a supply current of 2mA. It offers programmable features including Auto Retry, Current Limit, Fault Timeout, Latched Fault, Overvoltage Protection (OVP), Slew Rate control, and Undervoltage Lockout (UVLO). Communication is facilitated via an I2C interface. The LTC4260IGN-TRPBF is housed in a 24-SSOP package and is supplied on a tape and reel. This device is suitable for applications in industrial, telecommunications, and data center environments where reliable power sequencing and protection are critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | I2C |
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-SSOP (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Type | Hot Swap Controller, Monitor |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 8.5V ~ 80V |
| Applications | General Purpose |
| Internal Switch(s) | No |
| Current - Output (Max) | - |
| Supplier Device Package | 24-SSOP |
| Programmable Features | Auto Retry, Current Limit, Fault Timeout, Latched Fault, OVP, Slew Rate, UVLO |
| Number of Channels | 1 |
| Current - Supply | 2 mA |
