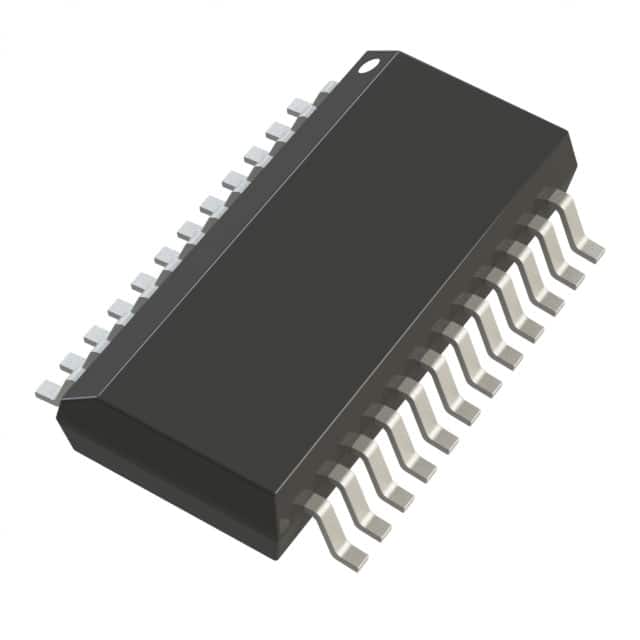

LTC4238IGN#PBF
HIGHVOLTAGE, HIGHPOWER HOTSWAP CManufacturer: Analog Devices Inc.
Categories: Hot Swap Controllers
Quality Control: Learn More
Analog Devices Inc. LTC4238IGN-PBF is a high-voltage, high-power Hot Swap controller designed for general-purpose applications. This single-channel device operates over a wide 6.5V to 80V supply voltage range and supports a maximum output current of 63A. Key features include auto-retry, thermal limit, undervoltage lockout (UVLO), circuit breaker functionality, current limiting, and fault timeout with latched fault capabilities. Internally switched, the LTC4238IGN-PBF is housed in a 24-SSOP package, suitable for surface mount installation. The component draws a minimal 3 mA supply current and is rated for operation between -40°C and 85°C (TJ). It finds application in demanding sectors such as industrial power systems, high-power servers, and telecommunications infrastructure.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Auto Retry, Thermal Limit, UVLO |
| Packaging | Tube |
| Package / Case | 24-SSOP (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Type | Hot Swap Controller |
| Operating Temperature | -40°C ~ 85°C (TJ) |
| Voltage - Supply | 6.5V ~ 80V |
| Applications | General Purpose |
| Internal Switch(s) | Yes |
| Current - Output (Max) | 63A |
| Supplier Device Package | 24-SSOP |
| Programmable Features | Auto Retry, Circuit Breaker, Current Limit, Fault Timeout, Latched Fault |
| Number of Channels | 1 |
| Current - Supply | 3 mA |
