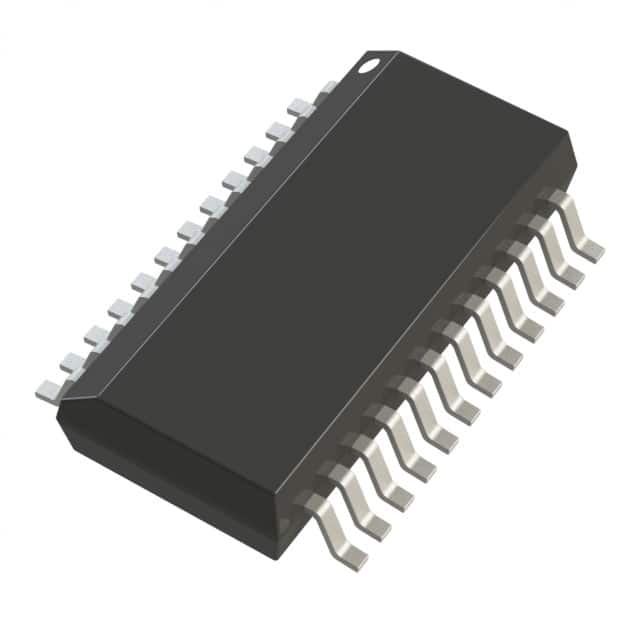

LTC4238HGN#PBF
HIGHVOLTAGE, HIGHPOWER HOTSWAP CManufacturer: Analog Devices Inc.
Categories: Hot Swap Controllers
Quality Control: Learn More
The Analog Devices Inc. LTC4238HGN-PBF is a single-channel, high-voltage Hot Swap controller designed for general-purpose applications. This device features internal power MOSFETs and supports a wide supply voltage range of 6.5V to 80V, with a maximum output current capability of 63A. Key operational features include Auto Retry, Thermal Limit, and Undervoltage Lockout (UVLO). Programmable functions encompass Auto Retry, Circuit Breaker, Current Limit, Fault Timeout, and Latched Fault, providing robust protection and control. The LTC4238HGN-PBF is housed in a 24-SSOP package, suitable for surface mounting. Its robust design and extensive feature set make it suitable for demanding applications in industrial, automotive, and power supply systems. The component operates within a junction temperature range of -40°C to 125°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Auto Retry, Thermal Limit, UVLO |
| Packaging | Tube |
| Package / Case | 24-SSOP (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Type | Hot Swap Controller |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Voltage - Supply | 6.5V ~ 80V |
| Applications | General Purpose |
| Internal Switch(s) | Yes |
| Current - Output (Max) | 63A |
| Supplier Device Package | 24-SSOP |
| Programmable Features | Auto Retry, Circuit Breaker, Current Limit, Fault Timeout, Latched Fault |
| Number of Channels | 1 |
| Current - Supply | 3 mA |
