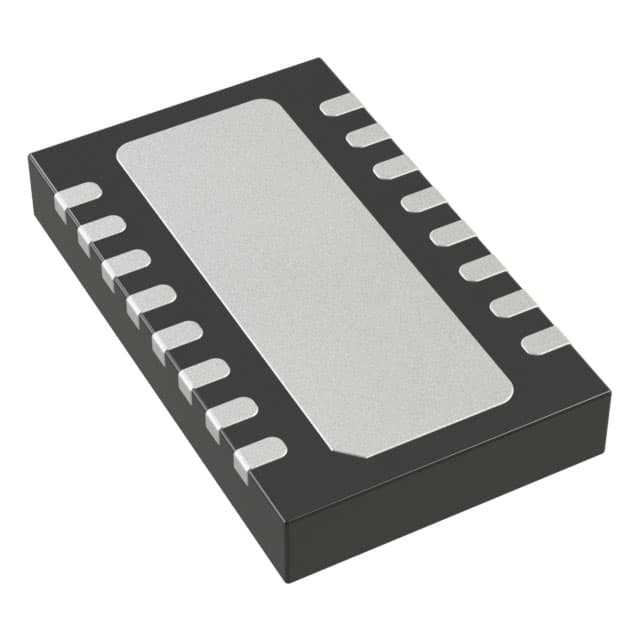

LTC4232CDHC#TRPBF
IC HOT SWAP CTRLR GP 16DFNManufacturer: Analog Devices Inc.
Categories: Hot Swap Controllers
Quality Control: Learn More
Analog Devices Inc. LTC4232CDHC-TRPBF is a single-channel Hot Swap controller and monitor. This device facilitates safe insertion and removal of components into live backplanes, leveraging its internal switch functionality. It operates over a wide supply voltage range of 2.9V to 15V and features programmable protection mechanisms including Auto Retry, Current Limit, Fault Timeout, Latched Fault, Overvoltage Protection (OVP), and Undervoltage Lockout (UVLO). The integrated Thermal Limit feature provides robust protection against overheating. The LTC4232CDHC-TRPBF offers a maximum output current of 5A with a low supply current of 1.6 mA. Packaged in a 16-DFN (5x3) with an exposed pad, this surface-mount component is suitable for general-purpose applications across various industrial, data center, and networking infrastructure sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Thermal Limit |
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Type | Hot Swap Controller, Monitor |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 2.9V ~ 15V |
| Applications | General Purpose |
| Internal Switch(s) | Yes |
| Current - Output (Max) | 5A |
| Supplier Device Package | 16-DFN (5x3) |
| Programmable Features | Auto Retry, Current Limit, Fault Timeout, Latched Fault, OVP, UVLO |
| Number of Channels | 1 |
| Current - Supply | 1.6 mA |
