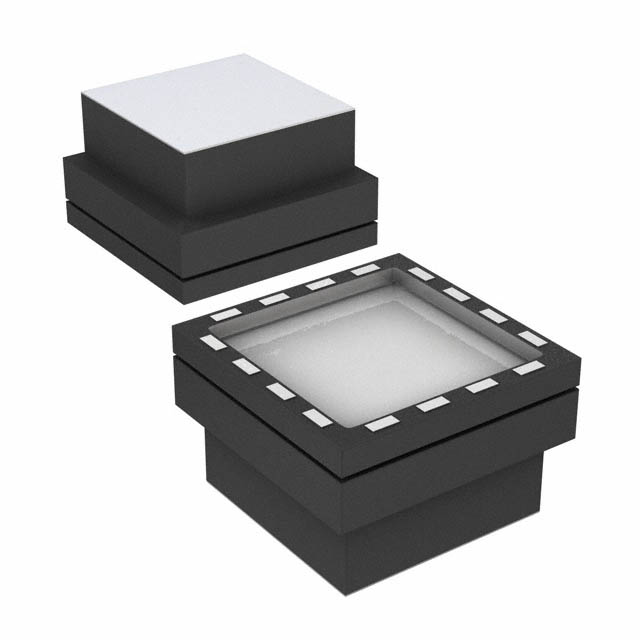

ADIS16060BCCZ
IC GYROSCOPE YAW RATE SPI 16LGAManufacturer: Analog Devices Inc.
Categories: Gyroscopes
Quality Control: Learn More
Analog Devices Inc. ADIS16060BCCZ is a digital yaw rate sensor designed for high-precision motion sensing applications. This component features a ±80°/s measurement range with a 1kHz bandwidth, enabling accurate capture of rotational movements around the Z-axis. Communication is facilitated via a serial peripheral interface (SPI), providing efficient data transfer. The device integrates an ambient temperature sensor and offers adjustable bandwidth for system optimization. It operates from a 4.75V to 5.25V supply and draws a typical current of 4.3 mA. Packaged in a 16-LGA (8.35x8.2 mm) footprint, the ADIS16060BCCZ is suitable for demanding environments with an operating temperature range of -40°C to 105°C. This sensor finds application in industrial automation, robotics, and navigation systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 33 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Adjustable Bandwidth, Temperature Sensor |
| Packaging | Tray |
| Package / Case | 16-BFLGA |
| Output Type | SPI |
| Type | Digital |
| Axis | Z (Yaw) |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply | 4.75V ~ 5.25V |
| Bandwidth | 1kHz |
| Range °/s | ±80 |
| Sensitivity (mV/°/s) | - |
| Sensitivity (LSB/(°/s)) | 81 |
| Current - Supply | 4.3 mA |
