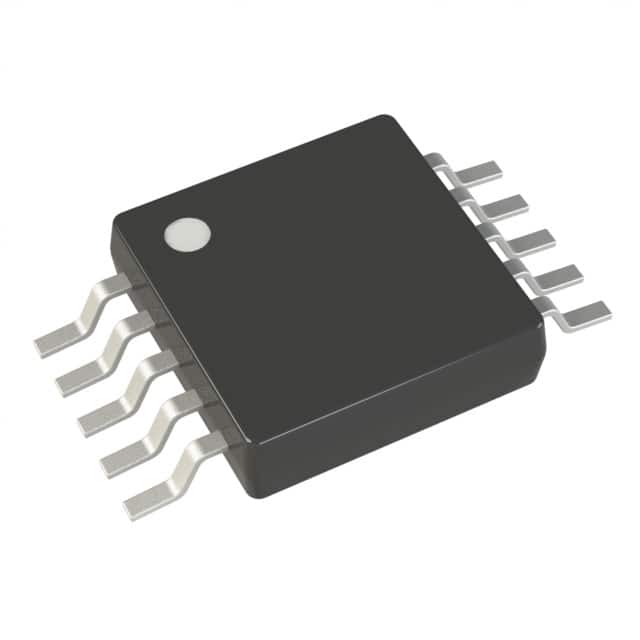

LTC7001MPMSE#TRPBF
IC GATE DRVR HIGH-SIDE 10MSOPManufacturer: Analog Devices Inc.
Categories: Gate Drivers
Quality Control: Learn More
Analog Devices Inc. LTC7001MPMSE-TRPBF is a high-side N-channel MOSFET gate driver. This single-channel device operates from a 3.5V to 15V supply voltage and features a non-inverting input. The driver is designed for high-side configurations, supporting a maximum bootstrap voltage of 135V. It offers typical rise and fall times of 90ns and 40ns respectively. The LTC7001MPMSE-TRPBF is housed in a 10-TFSOP, 10-MSOP (0.118"", 3.00mm Width) Exposed Pad package, suitable for surface mounting. Operating across an extended temperature range of -55°C to 150°C (TJ), this component is ideal for demanding applications in industrial, automotive, and aerospace sectors. It is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-TFSOP, 10-MSOP (0.118"", 3.00mm Width) Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Voltage - Supply | 3.5V ~ 15V |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 135 V |
| Supplier Device Package | 10-MSOP-EP |
| Rise / Fall Time (Typ) | 90ns, 40ns |
| Channel Type | Single |
| Driven Configuration | High-Side |
| Number of Drivers | 1 |
| Gate Type | N-Channel MOSFET |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | - |
| Programmable | Not Verified |
