LTC7000MPMSE-1#TRPBF

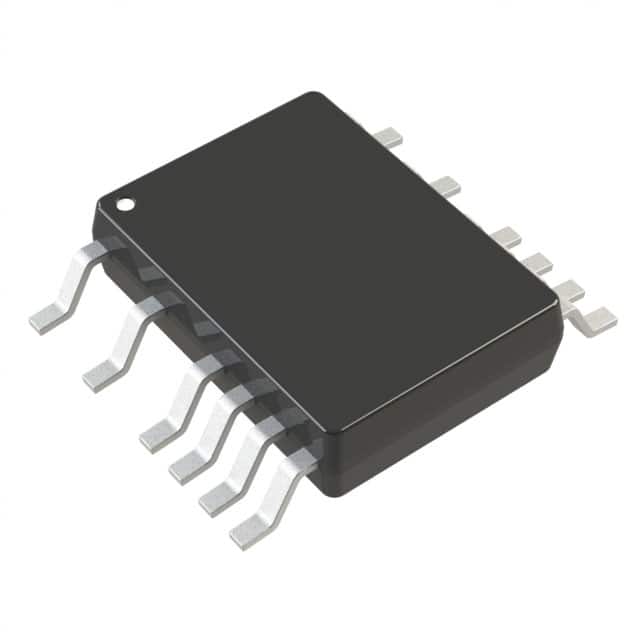

IC GATE DRVR HIGH-SIDE 16MSOPManufacturer: Analog Devices Inc.
Categories: Gate Drivers
Quality Control: Learn More
Analog Devices Inc. LTC7000MPMSE-1-TRPBF is a high-side N-channel MOSFET gate driver. This device operates with a supply voltage range of 3.5V to 135V and features a single, non-inverting input. The driver configuration is high-side, with a maximum bootstrap voltage of 135V. Designed for demanding applications, it offers typical rise and fall times of 90ns and 40ns respectively. The logic voltage thresholds are 1.8V for VIH and 1.7V for VIL. Packaged in a 16-MSOP-EP (16-TFSOP with exposed pad), this component is suitable for surface mounting and operates across an industrial temperature range of -55°C to 150°C. Industries such as automotive, industrial power supplies, and motor control commonly utilize this type of component for efficient power switching.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-TFSOP (0.118"", 3.00mm Width), 12 Leads, Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Voltage - Supply | 3.5V ~ 135V |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 135 V |
| Supplier Device Package | 16-MSOP-EP |
| Rise / Fall Time (Typ) | 90ns, 40ns |
| Channel Type | Single |
| Driven Configuration | High-Side |
| Number of Drivers | 1 |
| Gate Type | N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 1.8V, 1.7V |
| Current - Peak Output (Source, Sink) | - |
| Programmable | Not Verified |
