LTC4449IDCB#TRPBF
IC GATE DRVR HALF-BRIDGE 8DFNManufacturer: Analog Devices Inc.
Categories: Gate Drivers
Quality Control: Learn More

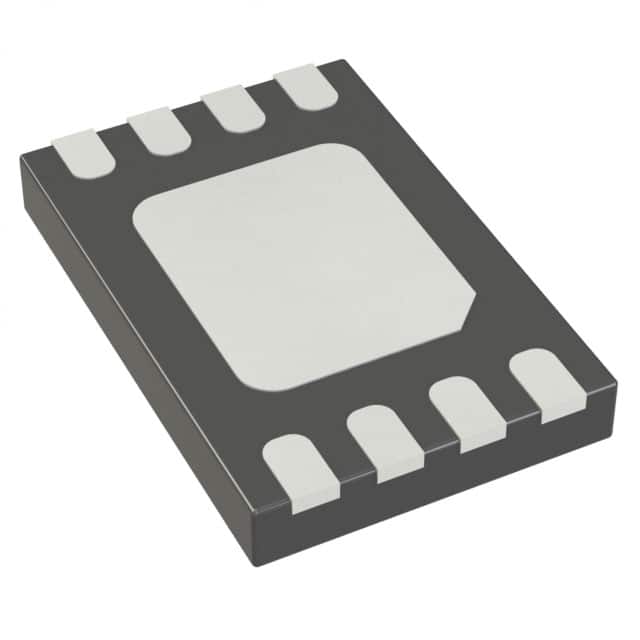

Half-Bridge Gate Driver IC Non-Inverting 8-DFN (2x3)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-WFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Voltage - Supply | 4V ~ 6.5V |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 42 V |
| Supplier Device Package | 8-DFN (2x3) |
| Rise / Fall Time (Typ) | 8ns, 7ns |
| Channel Type | Synchronous |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 3V, 6.5V |
| Current - Peak Output (Source, Sink) | 3.2A, 4.5A |
| Programmable | Not Verified |
