LTC4447EDD#PBF
IC GATE DRVR HALF-BRIDGE 12DFNManufacturer: Analog Devices Inc.
Categories: Gate Drivers
Quality Control: Learn More
The Analog Devices Inc. LTC4447EDD-PBF is a high-speed, non-inverting half-bridge gate driver. Designed for driving N-channel MOSFETs, this component features two independent drivers, each capable of sourcing and sinking 3.2A peak output current. It operates with a supply voltage range of 4V to 6.5V and supports a high-side bootstrap voltage up to 42V. The LTC4447EDD-PBF offers fast switching performance with typical rise and fall times of 8ns and 7ns, respectively. Its low logic voltage thresholds (VIL/VIH of 2.5V/3V) facilitate interfacing with a variety of microcontrollers. This device is housed in a 12-DFN (3x3) exposed pad package, suitable for surface mounting. Applications include DC-DC converters, motor control, and power supply systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 12-WFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Voltage - Supply | 4V ~ 6.5V |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 42 V |
| Supplier Device Package | 12-DFN (3x3) |
| Rise / Fall Time (Typ) | 8ns, 7ns |
| Channel Type | Synchronous |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 2.5V, 3V |
| Current - Peak Output (Source, Sink) | 3.2A, 3.2A |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy
LTC1623CMS8#TRPBF
IC GATE DRVR HIGH-SIDE 8MSOP
LTC1255CS8#TRPBF
IC GATE DRVR HIGH-SIDE 8SOIC

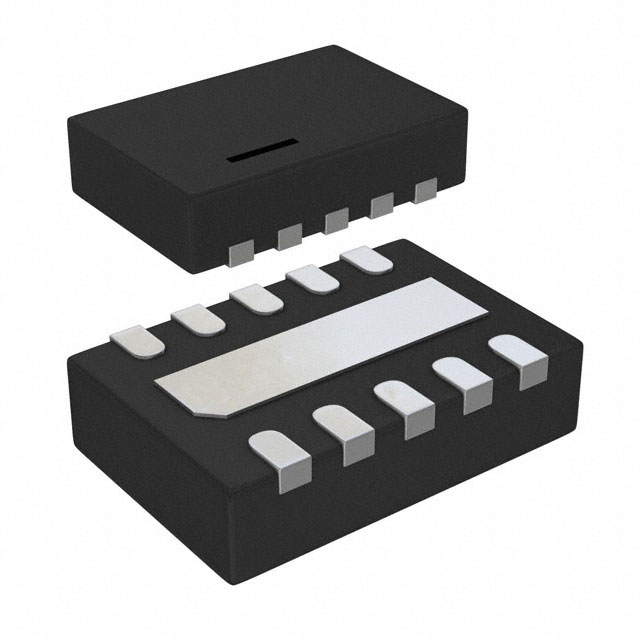

LT8672EDDB#TRMPBF
