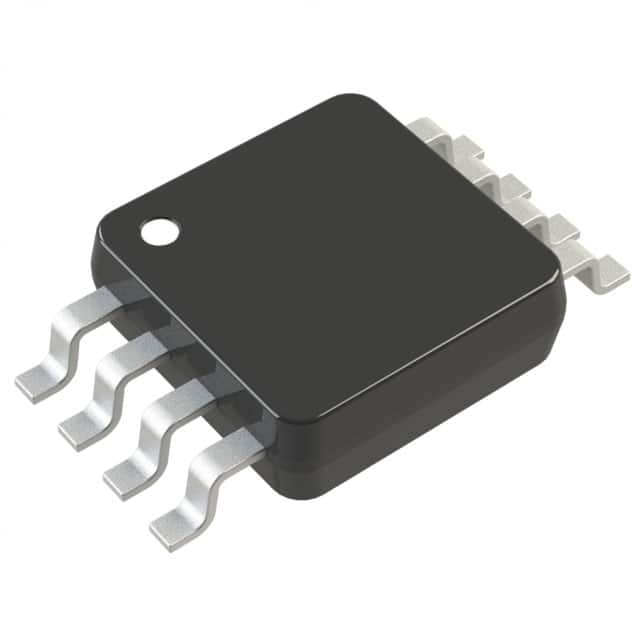

LTC4442EMS8E#TRPBF
IC GATE DRVR HALF-BRIDGE 8MSOPManufacturer: Analog Devices Inc.
Categories: Gate Drivers
Quality Control: Learn More
Half-Bridge Gate Driver IC Non-Inverting 8-MSOP-EP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-TSSOP, 8-MSOP (0.118"", 3.00mm Width) Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Voltage - Supply | 6V ~ 9.5V |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 42 V |
| Supplier Device Package | 8-MSOP-EP |
| Rise / Fall Time (Typ) | 12ns, 8ns |
| Channel Type | Synchronous |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 2.4A, 2.4A |
| Programmable | Not Verified |
