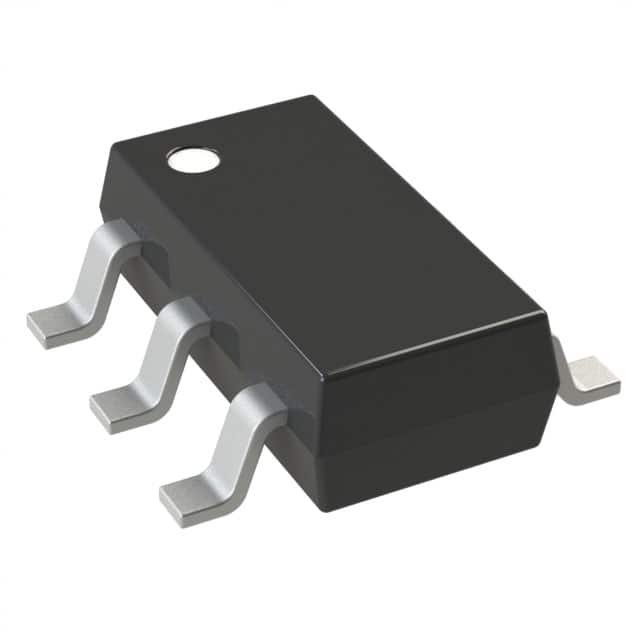

LTC4440IS6#TRMPBF
IC GATE DRVR HIGH-SIDE SOT23-6Manufacturer: Analog Devices Inc.
Categories: Gate Drivers
Quality Control: Learn More
The Analog Devices Inc. LTC4440IS6-TRMPBF is a high-side gate driver designed for N-channel MOSFETs. This single-channel component features a non-inverting input and operates from an 8V to 15V supply. It delivers robust performance with a peak output current of 2.4A source and sink, enabling rapid switching. The device supports a bootstrap voltage up to 80V, making it suitable for applications requiring high-side driving. Typical rise and fall times are 10ns and 7ns respectively. The LTC4440IS6-TRMPBF is housed in a TSOT-23-6 package and is supplied on tape and reel, ideal for automated assembly in power supply, motor control, and lighting applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Voltage - Supply | 8V ~ 15V |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 80 V |
| Supplier Device Package | TSOT-23-6 |
| Rise / Fall Time (Typ) | 10ns, 7ns |
| Channel Type | Single |
| Driven Configuration | High-Side |
| Number of Drivers | 1 |
| Gate Type | N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 1.3V, 1.6V |
| Current - Peak Output (Source, Sink) | 2.4A, 2.4A |
| Programmable | Not Verified |
