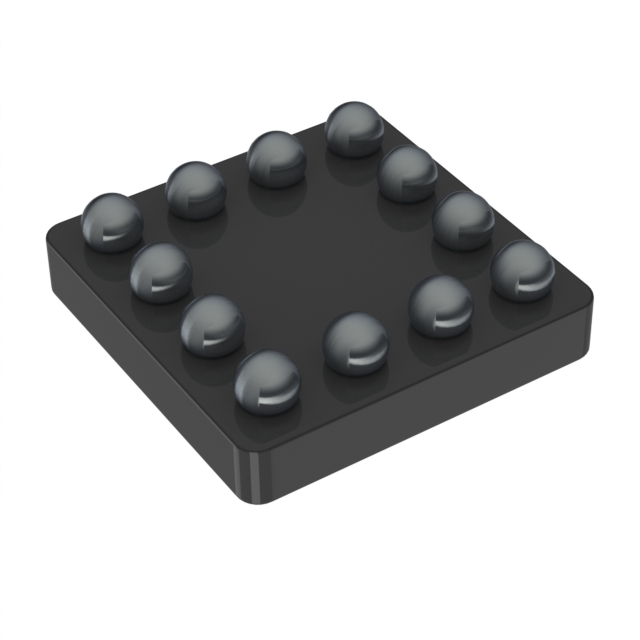

LT8418ACBZ-R7
IC GATE DRVR HALF-BRIDGE 12WLCSPManufacturer: Analog Devices Inc.
Categories: Gate Drivers
Quality Control: Learn More
Half-Bridge Gate Driver IC Non-Inverting 12-WLCSP (1.67x1.67)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-UFBGA, WLCSP |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Voltage - Supply | 3.85V ~ 5.5V |
| Input Type | Non-Inverting |
| Supplier Device Package | 12-WLCSP (1.67x1.67) |
| Rise / Fall Time (Typ) | 2.5ns, 2.5ns |
| Channel Type | Independent |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 4A, 8A |
| Programmable | - |
