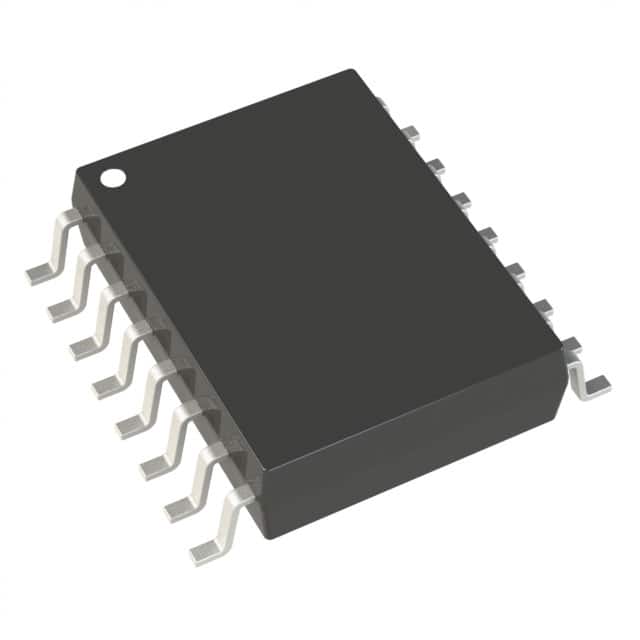

LT1158ISW#TRPBF
IC GATE DRVR HALF-BRIDGE 16SOICManufacturer: Analog Devices Inc.
Categories: Gate Drivers
Quality Control: Learn More
Half-Bridge Gate Driver IC Inverting, Non-Inverting 16-SO
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Voltage - Supply | 5V ~ 30V |
| Input Type | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 56 V |
| Supplier Device Package | 16-SO |
| Rise / Fall Time (Typ) | 130ns, 120ns |
| Channel Type | Synchronous |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 0.8V, 2V |
| Current - Peak Output (Source, Sink) | 500mA, 500mA |
| Programmable | Not Verified |
