ADP3415LRM-REEL-AD
DUAL MOSFET DRIVER W/BOOTSTRAPPIManufacturer: Analog Devices Inc.
Categories: Gate Drivers
Quality Control: Learn More

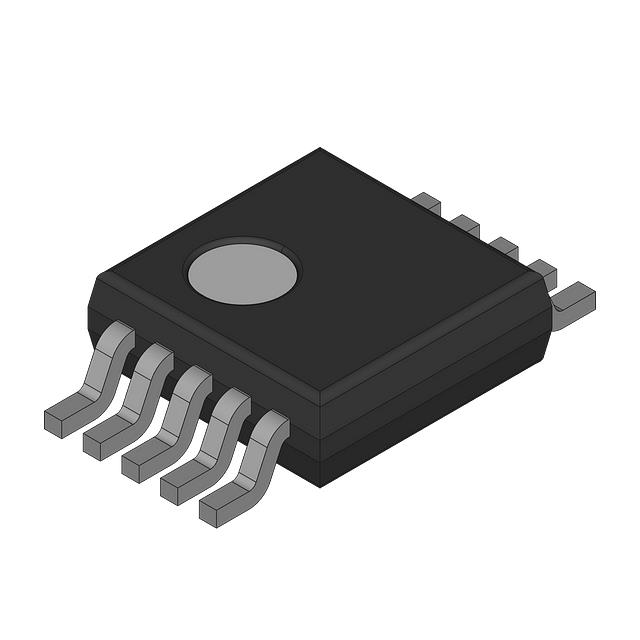

Half-Bridge Gate Driver IC Non-Inverting 10-MSOP
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 10-TFSOP, 10-MSOP (0.118"", 3.00mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C ~ 100°C (TA) |
| Voltage - Supply | 4.75V ~ 5.25V |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 30 V |
| Supplier Device Package | 10-MSOP |
| Rise / Fall Time (Typ) | 20ns, 25ns |
| Channel Type | Synchronous |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 0.8V, 2V |
| Current - Peak Output (Source, Sink) | - |
| Programmable | Not Verified |
