ADE7755AN

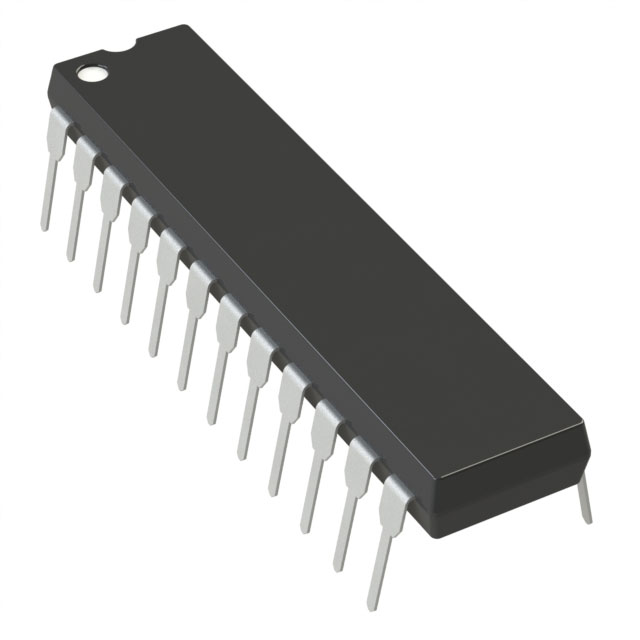

IC ENERGY METERING 24DIPManufacturer: Analog Devices Inc.
Categories: Energy Metering
Quality Control: Learn More
Analog Devices Inc. ADE7755AN is a single-phase energy metering integrated circuit. This component is designed for precision measurement of active and reactive energy. It features a high-accuracy measurement engine capable of achieving 0.1% total integrated error. The ADE7755AN operates from a 4.75V to 5.25V supply voltage with a typical current consumption of 3mA. Input impedance is rated at 390kOhm. The device supports through-hole mounting and is supplied in a 24-PDIP package. Operating temperature ranges from -40°C to 85°C. Key applications include smart metering, power monitoring, and industrial energy management systems. The ADE7755AN is suitable for applications requiring accurate real-time energy data acquisition.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 24-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 3mA |
| Measurement Error | 0.1% |
| Input Impedance | 390kOhm |
| Voltage - I/O High | 2.4V |
| Voltage - I/O Low | 0.8V |
| Meter Type | Single Phase |
| Supplier Device Package | 24-PDIP |
| Voltage - Supply | 4.75 V ~ 5.25 V |
