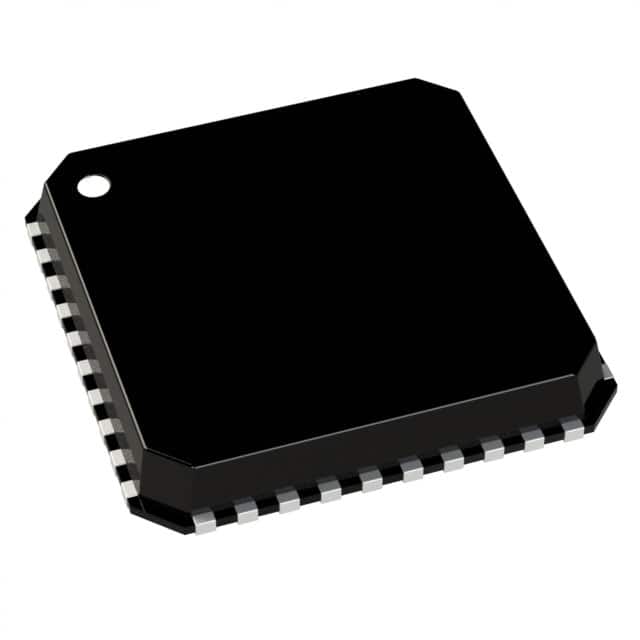

ADV7393BCPZ
IC DAC VIDEO HDTV 10BIT 40LFCSPManufacturer: Analog Devices Inc.
Categories: Encoders, Decoders, Converters
Quality Control: Learn More
Analog Devices Inc. ADV7393BCPZ is a high-performance video encoder featuring a 10-bit digital-to-analog converter (DAC) for HDTV applications. This component is designed for robust video signal processing, offering excellent signal integrity and accuracy. The device operates with analog supply voltages ranging from 2.6V to 3.46V and digital supply voltages between 1.71V and 1.89V. Packaged in a 40-lead LFCSP-VQ (6x6mm) with an exposed pad for improved thermal performance, it is suitable for surface-mount applications. The ADV7393BCPZ finds utility in demanding video systems, including set-top boxes, video players, and various display technologies where precise video output is critical. Its advanced architecture ensures compatibility with modern video standards and high-resolution content.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 40-VFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Type | Video Encoder |
| Voltage - Supply, Analog | 2.6V ~ 3.46V |
| Voltage - Supply, Digital | 1.71V ~ 1.89V |
| Applications | Set-Top Boxes, Video Players, Displays |
| Supplier Device Package | 40-LFCSP-VQ (6x6) |
