ADV7171KS-REEL
IC DAC VIDEO ENC NTSC 44-MQFPManufacturer: Analog Devices Inc.
Categories: Encoders, Decoders, Converters
Quality Control: Learn More

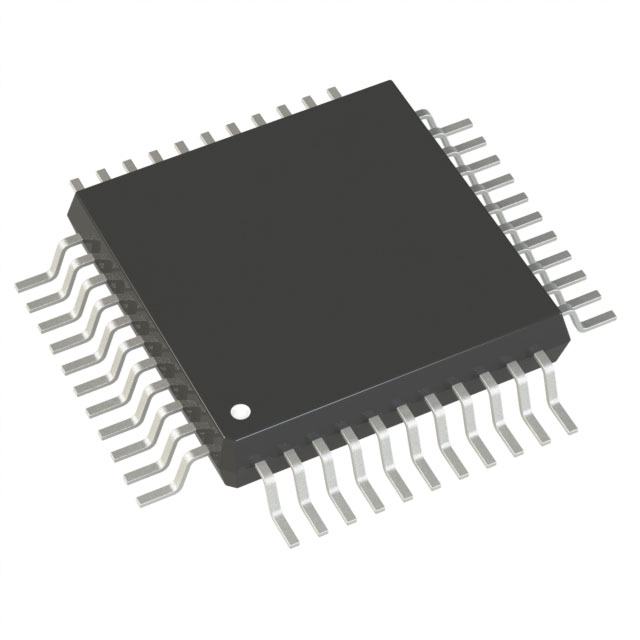

Analog Devices Inc. ADV7171KS-REEL is a high-performance video encoder IC. This component is designed for applications requiring NTSC analog video output, commonly found in set-top boxes and video players. It integrates a digital-to-analog converter (DAC) for precise video signal generation. The ADV7171KS-REEL features a 44-MQFP (10x10) package, facilitating surface mount assembly. It operates within an analog supply voltage range of 4.75V to 5.25V. This device is a key component in video signal processing chains within the consumer electronics and broadcast industries.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 44-QFP |
| Mounting Type | Surface Mount |
| Type | Video Encoder |
| Voltage - Supply, Analog | 4.75V ~ 5.25V |
| Voltage - Supply, Digital | - |
| Applications | Set-Top Boxes, Video Players |
| Supplier Device Package | 44-MQFP (10x10) |
