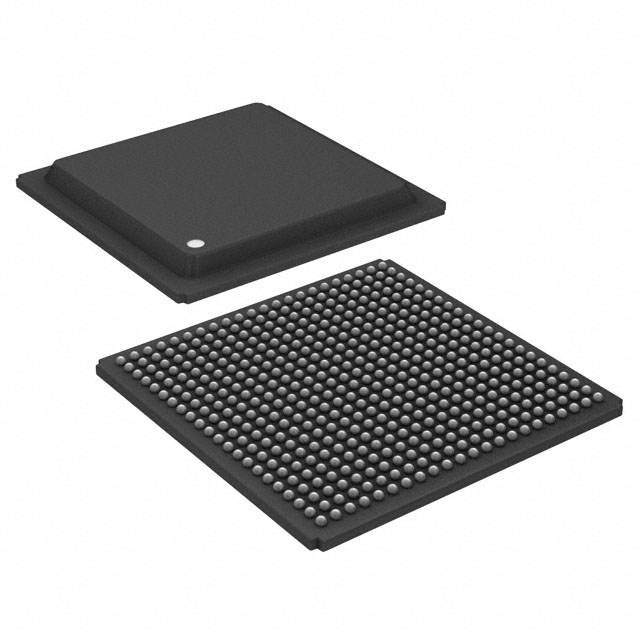

ADSP-TS101SAB2Z100
IC DSP CTRLR 6MBIT 300MHZ 484BGAManufacturer: Analog Devices Inc.
Categories: DSP (Digital Signal Processors)
Quality Control: Learn More
Analog Devices Inc. TigerSHARC® ADSP-TS101SAB2Z100 is a high-performance digital signal processor featuring a 300MHz clock rate. This fixed/floating-point DSP controller integrates 768KB of on-chip RAM and 6Mbit of internal memory. Designed for demanding applications, it offers robust connectivity through its Host Interface, Link Port, and Multi-Processor capabilities, enabling complex system architectures. The ADSP-TS101SAB2Z100 operates with a core voltage of 1.20V and an I/O voltage of 3.30V. Its 484-BFBGA (484-PBGA 19x19) surface-mount package is suitable for operation across a temperature range of -40°C to 85°C (TC). This component is commonly utilized in telecommunications, defense, and industrial automation sectors where advanced signal processing is critical. The device requires external non-volatile memory for program storage.
Additional Information
Series: TigerSHARC®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 484-BFBGA |
| Mounting Type | Surface Mount |
| Interface | Host Interface, Link Port, Multi-Processor |
| Type | Fixed/Floating Point |
| Operating Temperature | -40°C ~ 85°C (TC) |
| Non-Volatile Memory | External |
| On-Chip RAM | 768KB |
| Voltage - I/O | 3.30V |
| Voltage - Core | 1.20V |
| Clock Rate | 300MHz |
| Supplier Device Package | 484-PBGA (19x19) |
