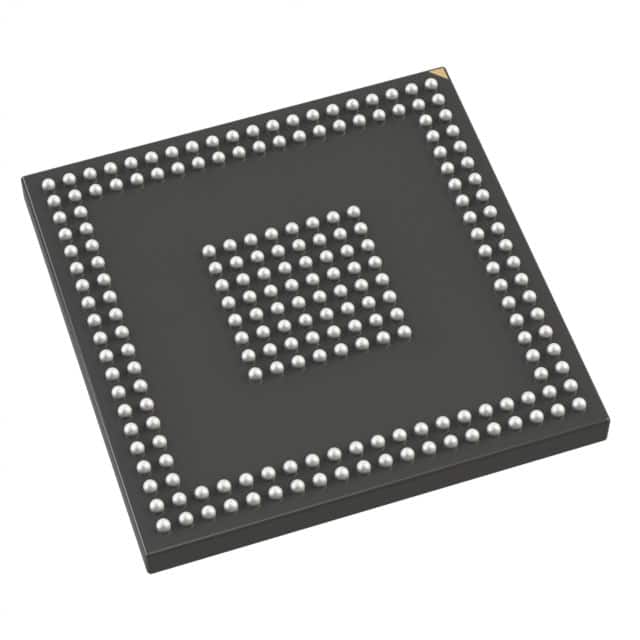

ADSP-BF536BBCZ4BRL
IC DSP CTLR 16BIT 208CSBGAManufacturer: Analog Devices Inc.
Categories: DSP (Digital Signal Processors)
Quality Control: Learn More
Analog Devices Inc. Blackfin® ADSP-BF536BBCZ4BRL is a 16-bit fixed-point digital signal processor (DSP) controller. This device features a 400MHz core clock rate and includes 100kB of on-chip RAM. Connectivity is facilitated through multiple peripheral interfaces including CAN, SPI, SSP, TWI, and UART. The ADSP-BF536BBCZ4BRL utilizes external non-volatile memory. It operates within a temperature range of -40°C to 85°C (TA) and is supplied in a 208-CSPBGA (17x17) package, surface-mounted, presented on a Tape & Reel (TR). Core voltage is 1.20V, with I/O voltages supported at 2.50V and 3.30V. This processor is commonly found in industrial automation and automotive applications.
Additional Information
Series: Blackfin®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 208-FBGA, CSPBGA |
| Mounting Type | Surface Mount |
| Interface | CAN, SPI, SSP, TWI, UART |
| Type | Fixed Point |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Non-Volatile Memory | External |
| On-Chip RAM | 100kB |
| Voltage - I/O | 2.50V, 3.30V |
| Voltage - Core | 1.20V |
| Clock Rate | 400MHz |
| Supplier Device Package | 208-CSPBGA (17x17) |
Request a Quote
